Bateson Specialist Vehicle Mover - Bn.PT763.5t 20' x 7' Ultra low angle tiltbed
The ultimate tilt-bed vehicle mover with punched steel outer runners for good traction and numerous options for lashing down (see single claw ratchet straps in our accessories range).

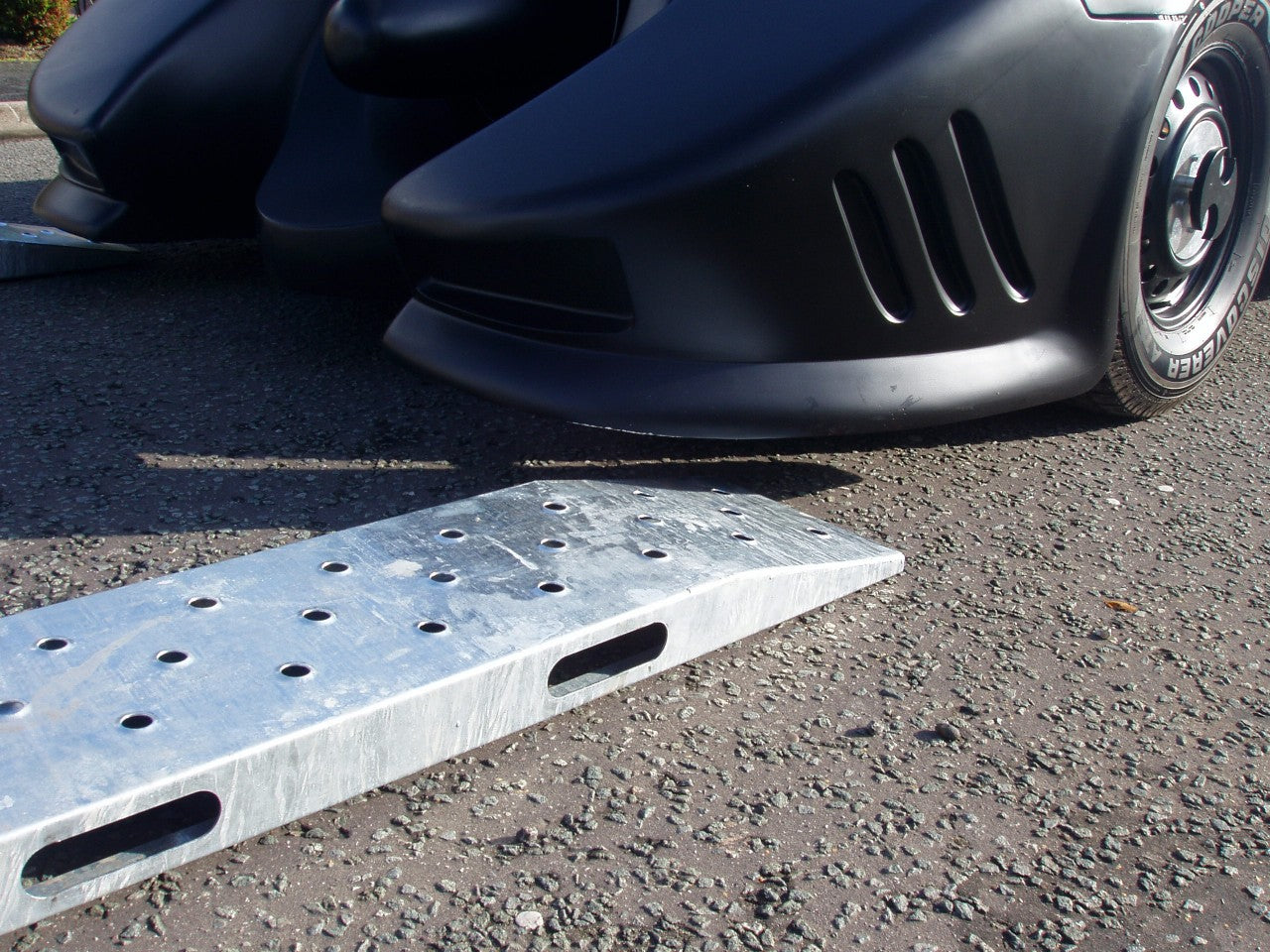

Achieve a very low approach angle with manageable 4ft long ramps for 80% of vehicles (no need to be lifting 8ft+ long ramps for every load). Then just use the extra short 2ft long extension ramps for the ultra-low vehicles.

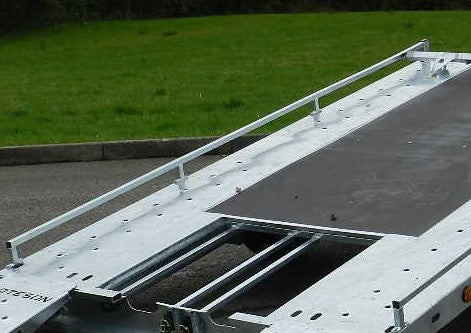

The PT range is very low-loading flat platform trailers with hydraulic tilt. The laser-cut chassis members incorporate the outside sections of the floor, which increases the strength while reducing the platform height and unladen weight. This also allows tyre grips and load-securing points to be cut into the deck inside the sides. If hinged sides are required, three are fitted on each side with lift-out centre and corner posts.
A 75cm High ramp door is fitted on all three trailers to provide a constant approach angle. detachable ramp blocks are available for very low vehicles and loose ramps are available for side loading that store between the centre side posts.

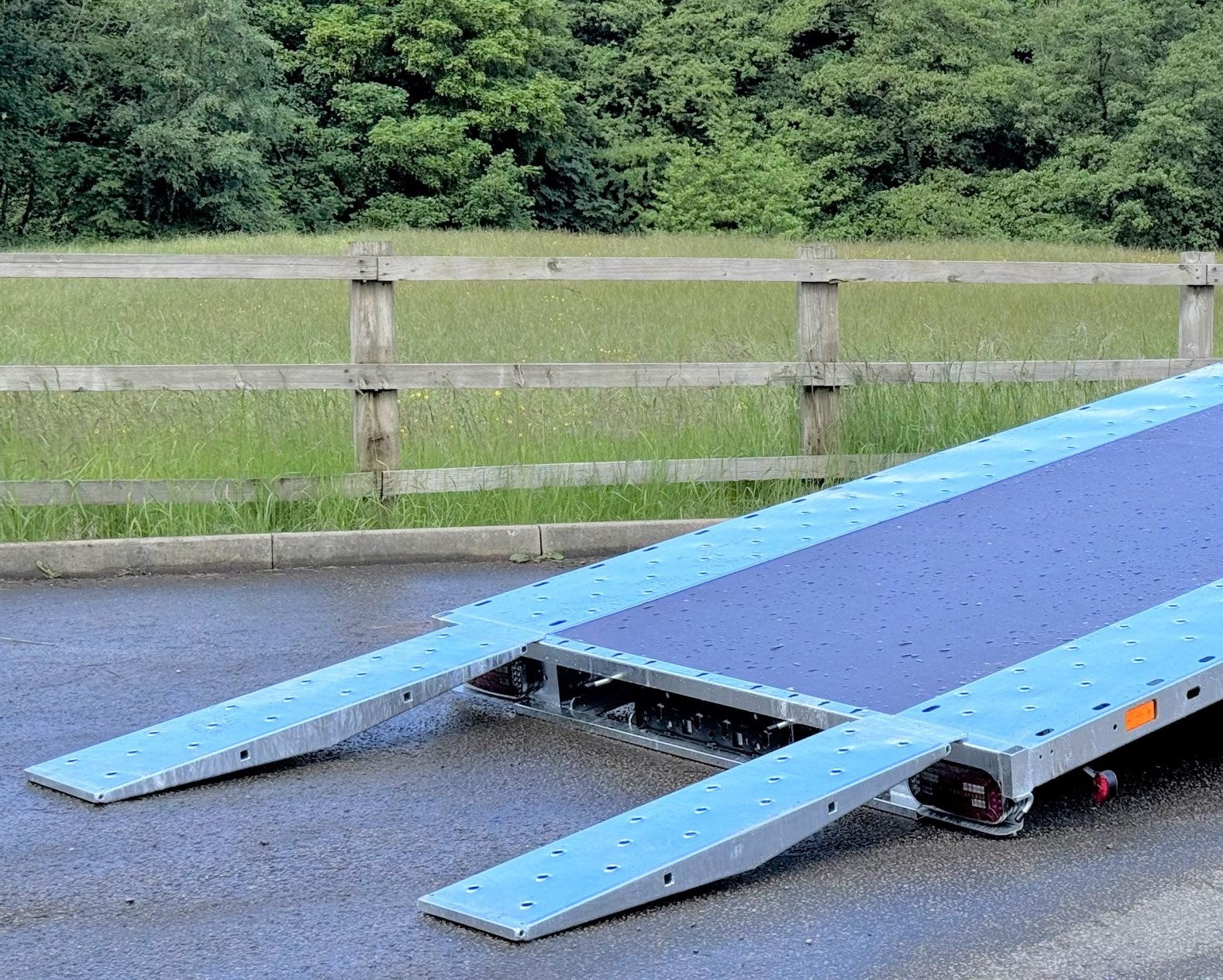

As a free option, we offer these trailers without the rear ramp and with two slide-under ramps that are 1200mm long and 300mm wide. This allows a rear overhang and further reduces the approach angle. A 2-ton hand winch or 12v electric winch and a front adjustable wheel chock are also available. Non-tilting models are available that can be fitted with triple axles if required, and they can then be plated to a gross weight of 3500kg.
