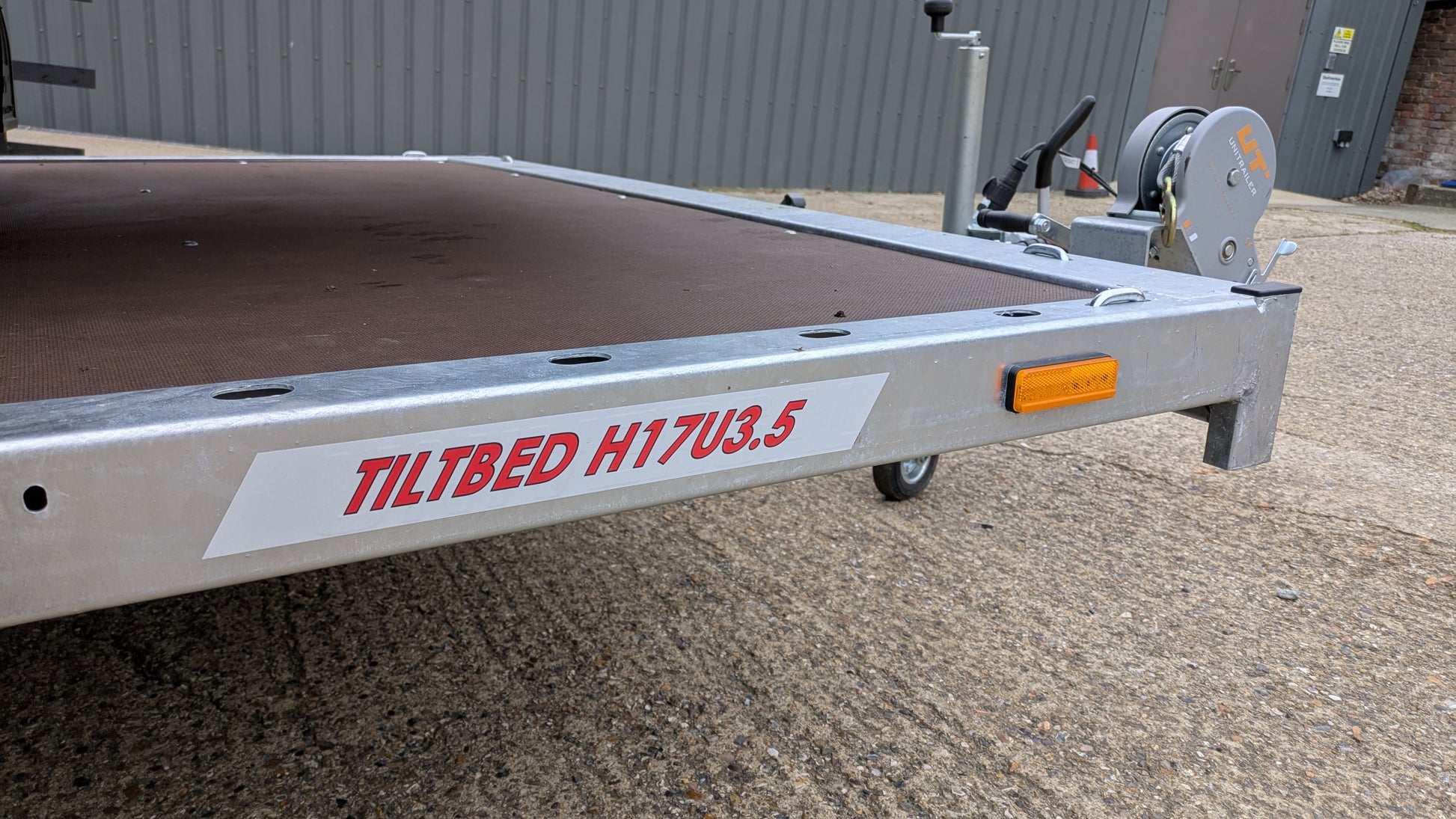

CRH 3.5t - Tilt-Bed Universal Trailer - H17U3.5 16'8" x 6'10"

The CRH Heavy Braked Tilt-Bed Trailer is a high-quality PRO tilt-bed trailer, measuring 16'8" x 6'10" with a tailgate ramp. This tri-axle trailer has a low loading angle of 9 degrees, making it ideal for heavy-duty hauling and easy loading. Fitted with twin tilt rams for better lifting of heavy vehicles or machines.

THIS IS MORE THAN JUST A CAR TRANSPORTER  - WITH A 3 YEAR WARRANTY

Perfect for a variety of uses, this trailer comes with a robust construction and features a fully welded frame.

Aluminium drop-sides kit also available for this trailer.

Sides: No, but available as an option

Roof: N/A

Standard Fitments:

Auto HD F/U Jockey wheel

Winch

Internal lashing points

Marker lamps

Spare Wheel & Carrier: No, but available as an option

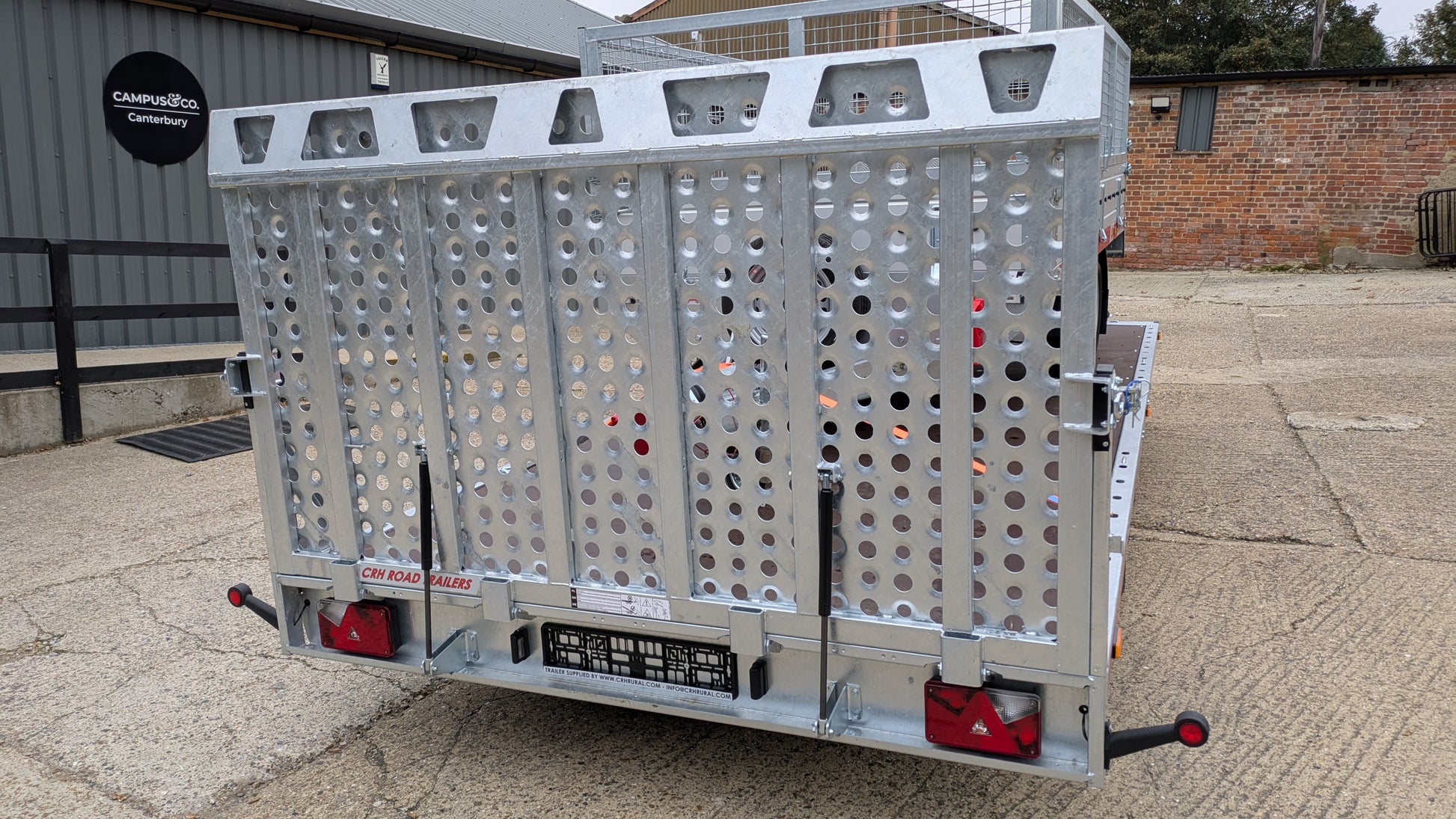

Loading Ramps: HD Tailgate Ramp 800mm high with rubber pads

GVWR: 3500kg

Series: UNI51213S3.5T

Load Capacity (Payload): 2598kg

Trailer Weight: 902kg

External Length (Overall): 6630mm

Internal Bed Length: 5070mm

External Width: 2210mm

Internal Bed Width: 2100mm

Overall Height: 940mm

Brake: Braked

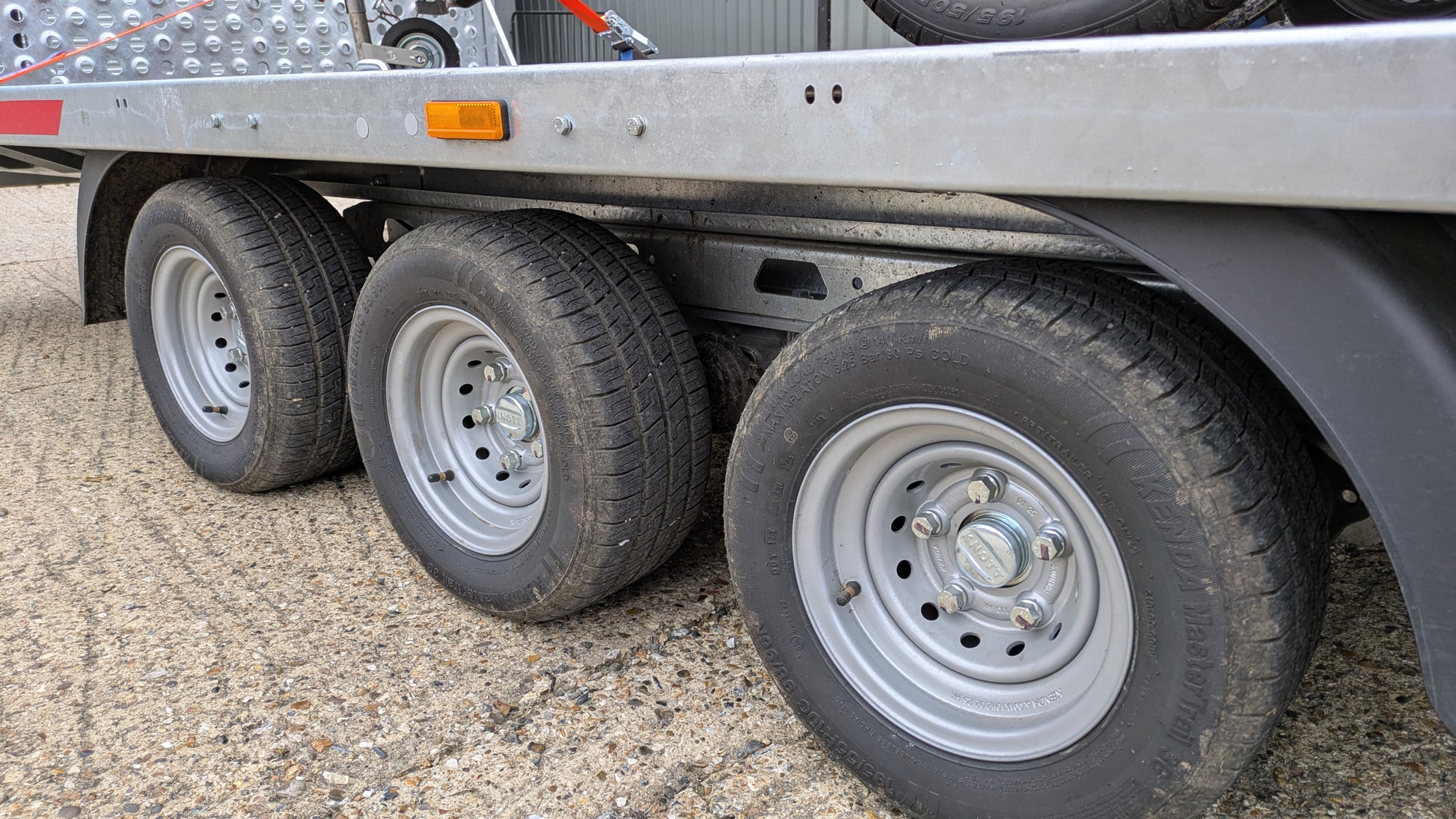

Wheels & High-Speed Tyres: 195/55 R10C

Suspension: Torsion sprung

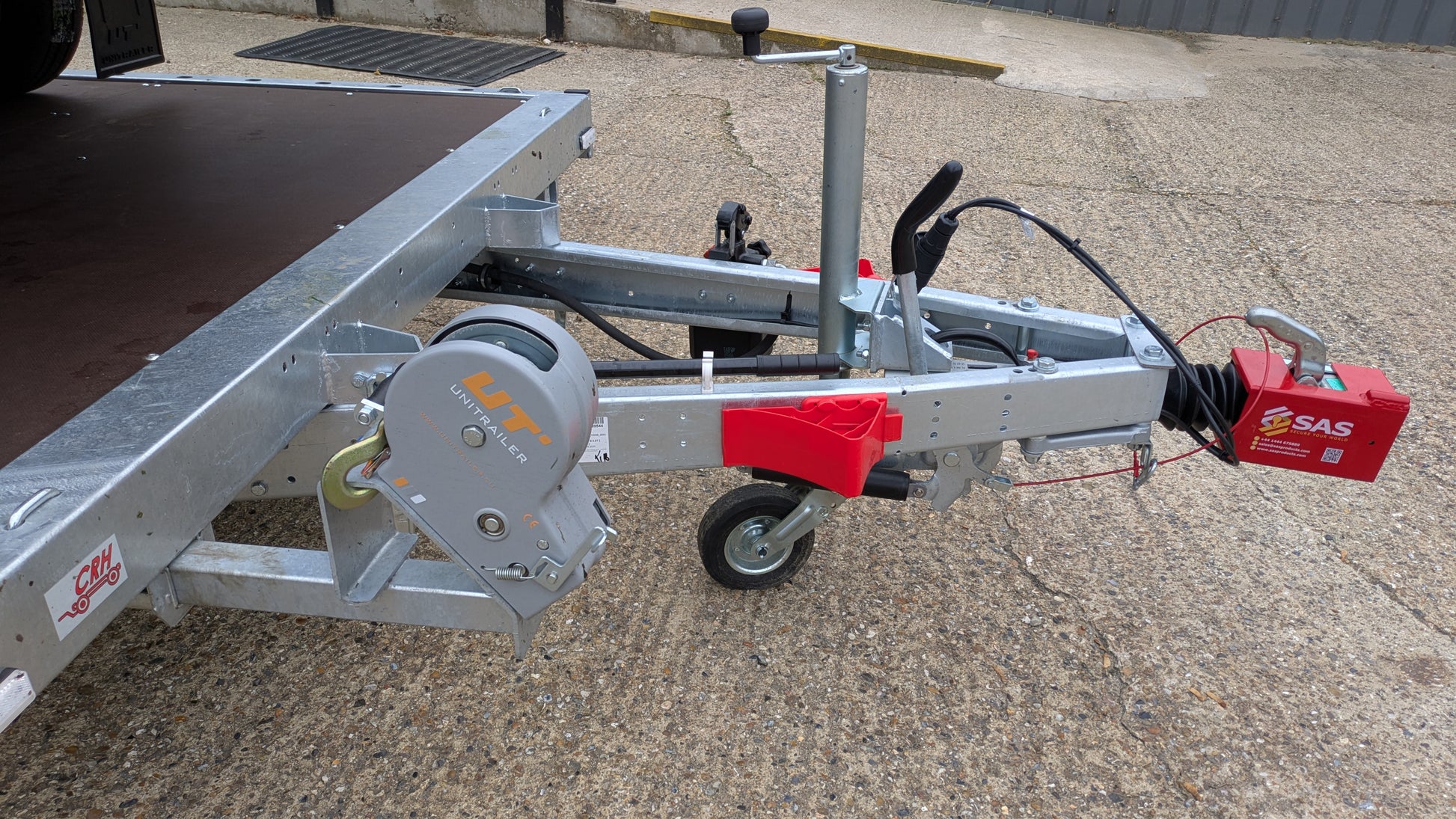

Tilting: Yes - twin rams

Floor: Phenol-coated anti-slip plywood

Frame Type: Fully welded

Frame Material: Galvanised Steel

Hitch Lock - Braked for hitched & un-hitched

3 piece set of 300mm high aluminium drop-sides

1200mm high rear tailgate ramp (instead of 800mm high)

Spare Wheel & Bracket

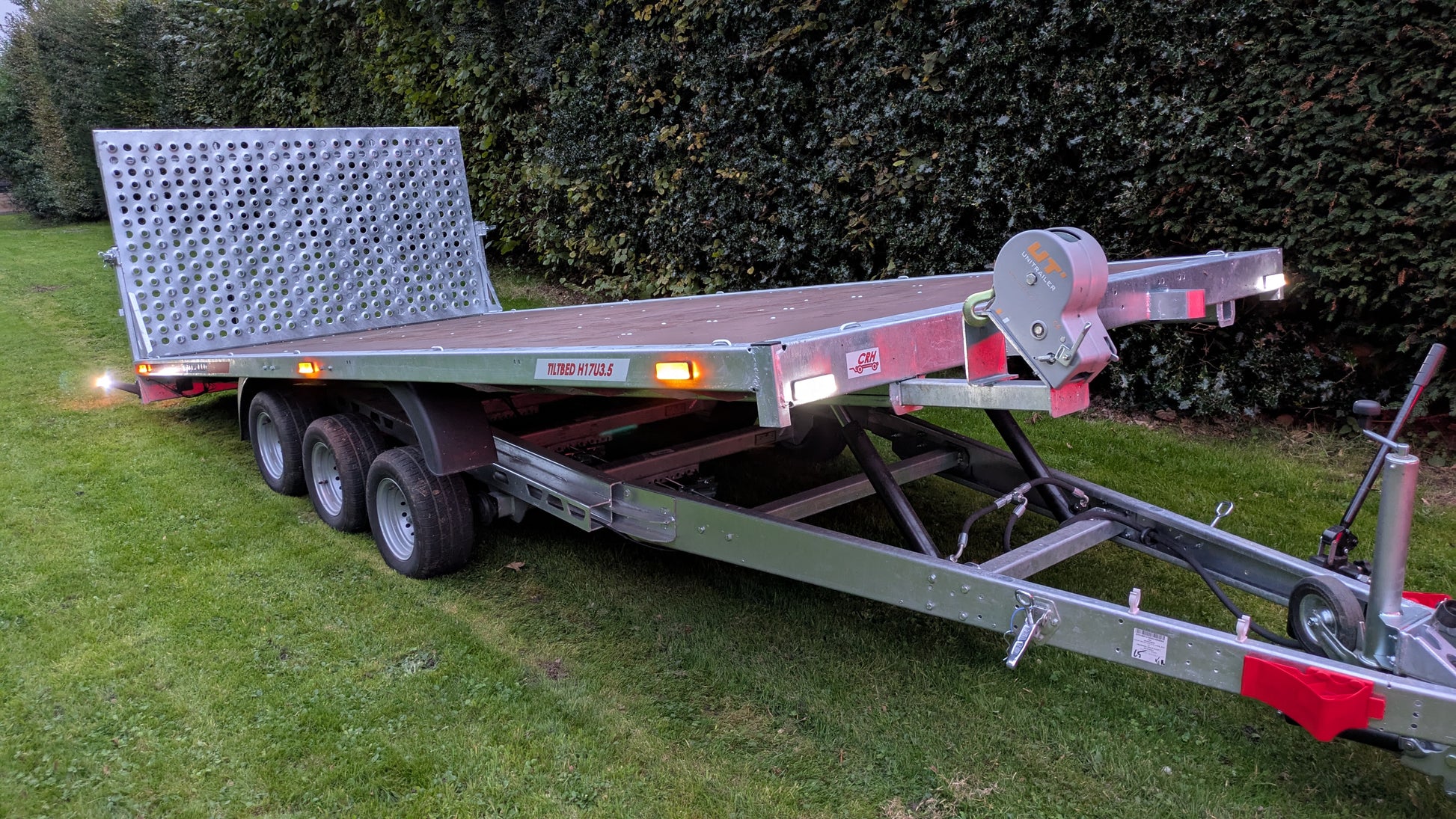

Full LED Light Set

Ali tool/equipment box - fitted above or under frame

Aluminium multi-panel floor upgrade

Universal full width wheel chock
