CRH Heavy - Braked XL Plant - H136B3.5

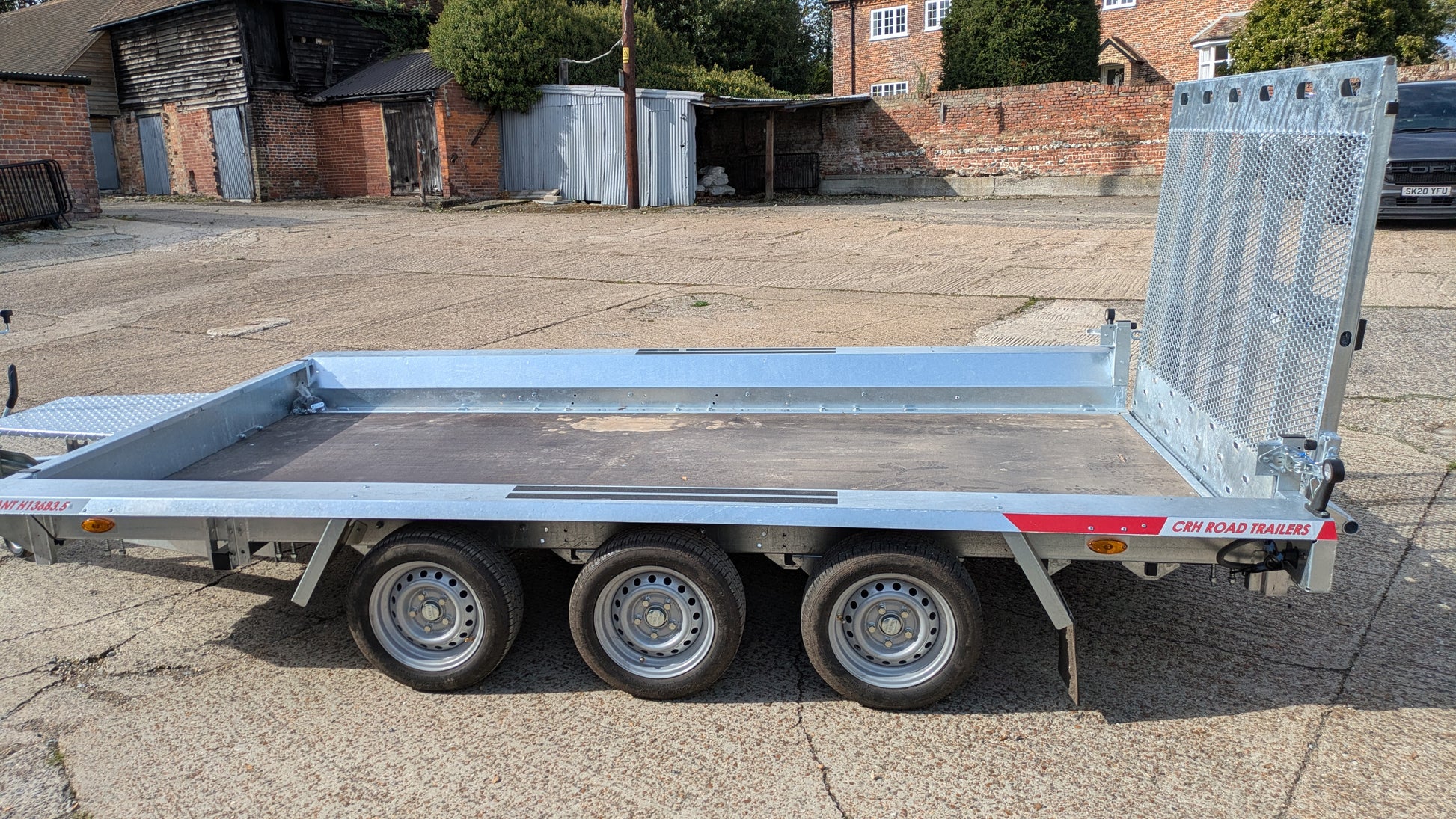

The CRH Heavy Braked XL Plant Trailer is a PRO XL Plant Trailer, offering an impressive 13'2" x 6' bed with a high payload capacity. Equipped with an HD tailgate ramp, this tri-axle trailer is the largest plant trailer we know of, designed for heavy-duty and plant transport. The trailer is equipped with a strong integral chassis frame that can even be walked on.

Sides: Integral part of chassis frame, strong enough to walk on (full length)

Roof: N/A

Standard Fitments:

Bucket rest with space for spare wheel under

Spare Wheel & Carrier: No, but available as an option

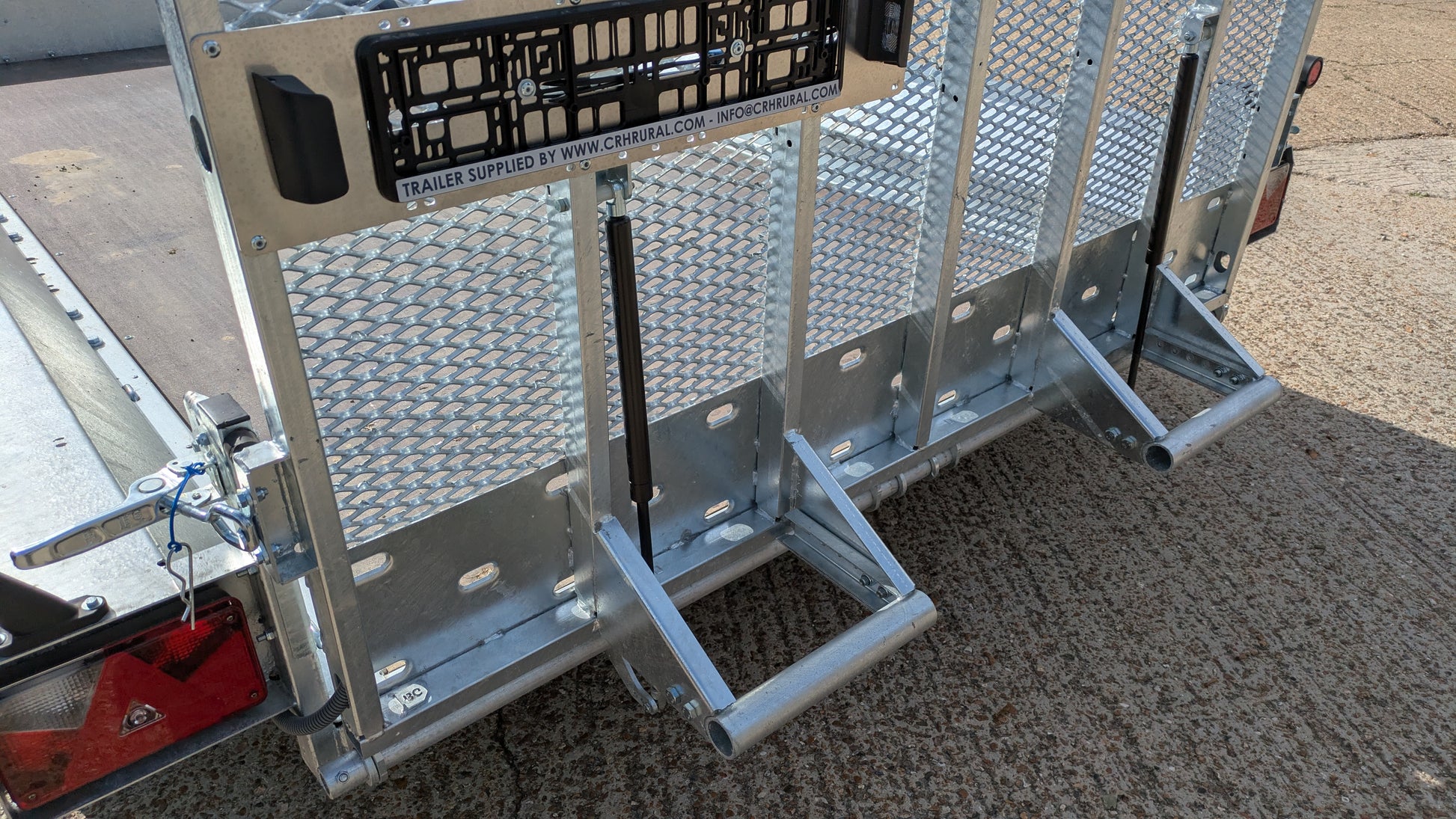

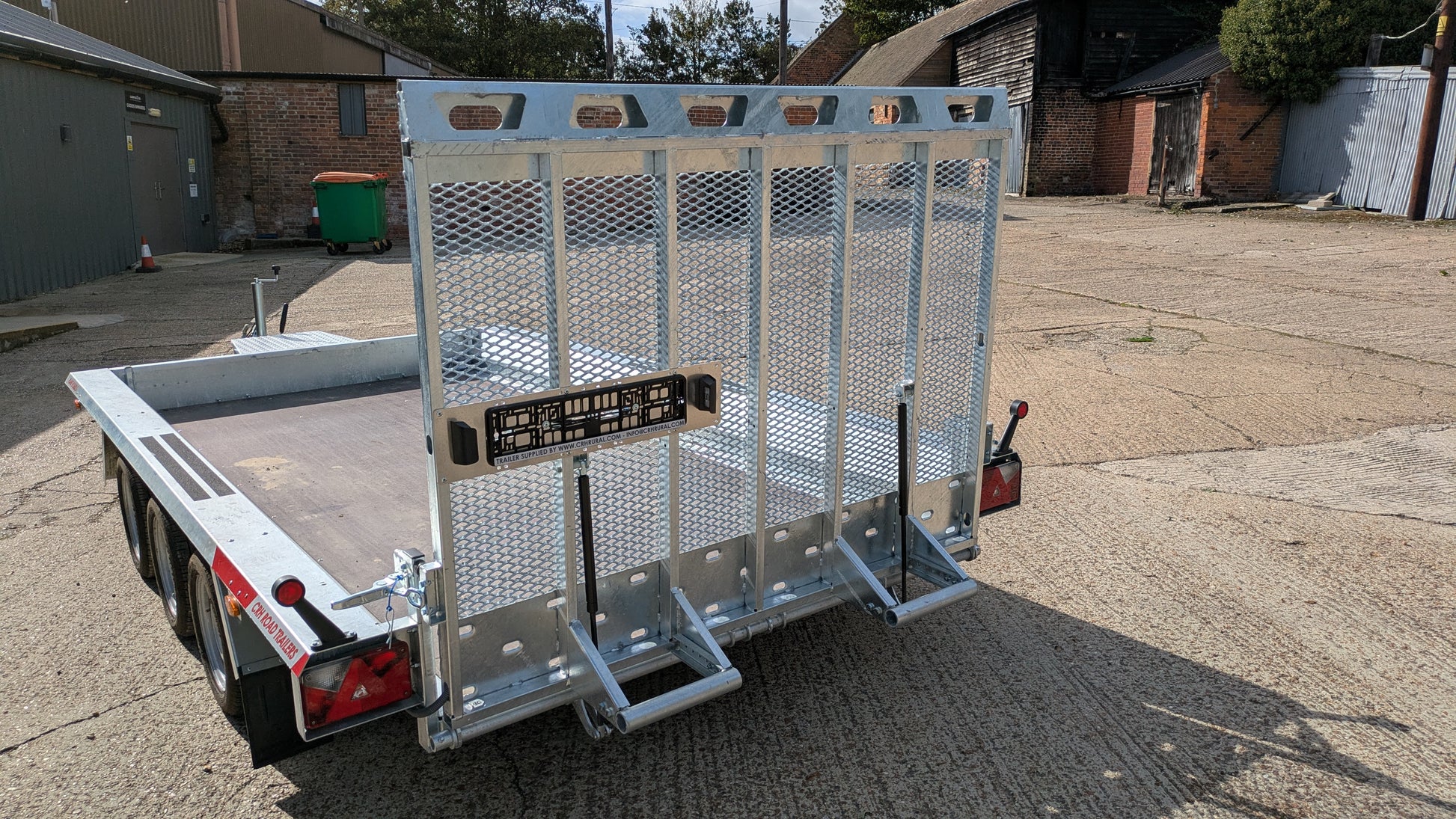

Loading Ramps: HD Tailgate Ramp with rubber blocks & gas-assist rams

GVWR: 3500kg

Series: BU340183S3.5T

Load Capacity (Payload): 2744kg

Trailer Weight: 756kg

External Length (Overall): 6011mm

Internal Bed Length: 4000mm

External Width: 2422mm

Internal Bed Width: 1822mm

Overall Height: 1820mm (including tailgate ramp)

Brake: Braked

Wheels & High-Speed Tyres: 195/55 R13C

Suspension: Torsion sprung

Tilting: No

Floor: Phenol-coated anti-slip plywood

Frame Type: Fully welded

Frame Material: Galvanised Steel

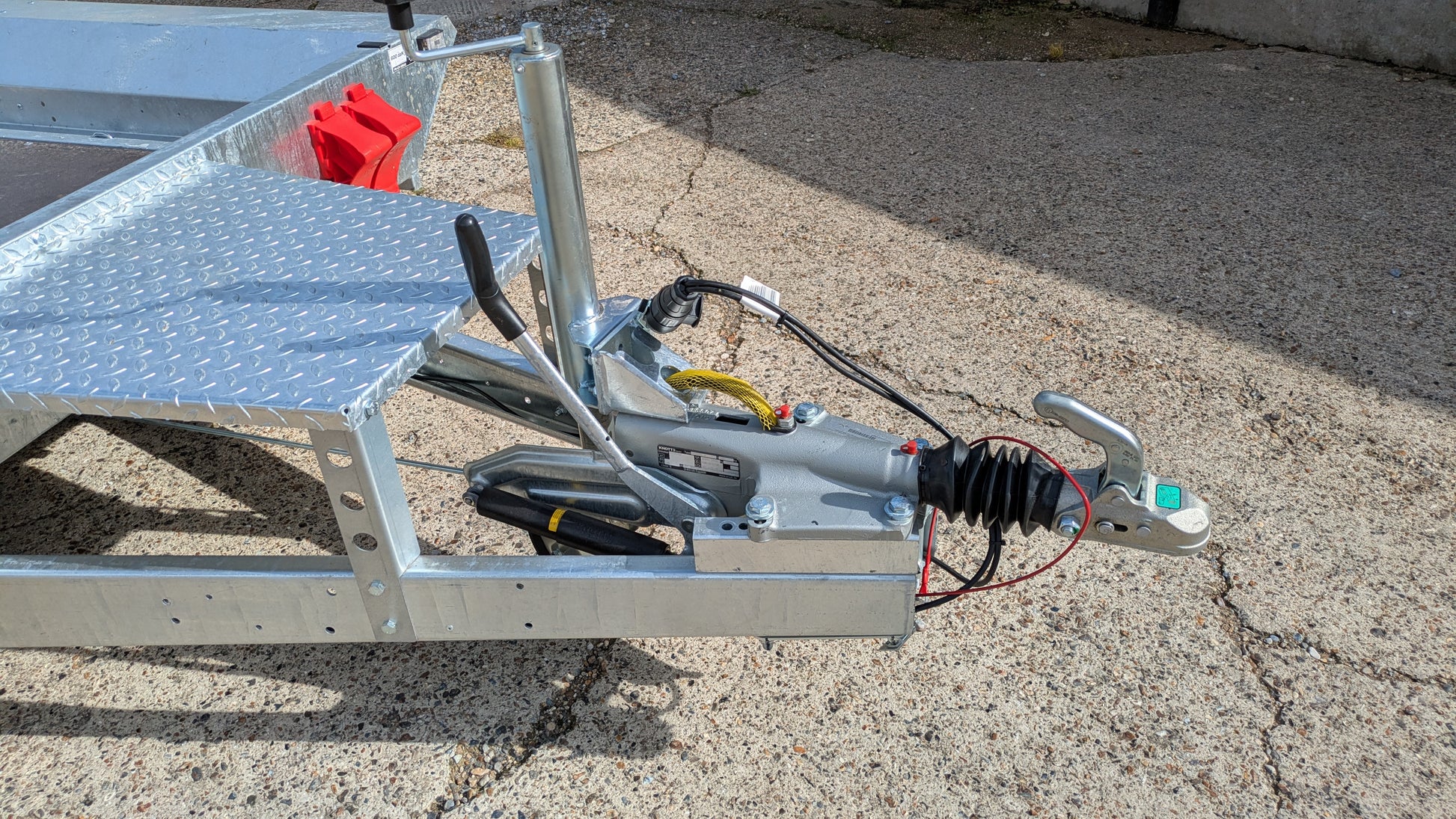

Hitch Lock - Braked for hitched & un-hitched

Change up to R14 wheels & tyres

Ali plate floor option

Spare Wheel & Bracket

Full LED Light Set

Ali tool/equipment box - fitted above or under frame or a corner box.
