CRH Tiltbed - 8'6"x5' SA Trailer - L85UB1

The CRH Light Unbraked Tilt.D Trailer is perfect for both car and van use, featuring an 8'6" x 5' bed with drop-ends and 400mm sides. It comes with a single axle and a tilting drawbar, providing versatile and practical solutions for transporting goods.

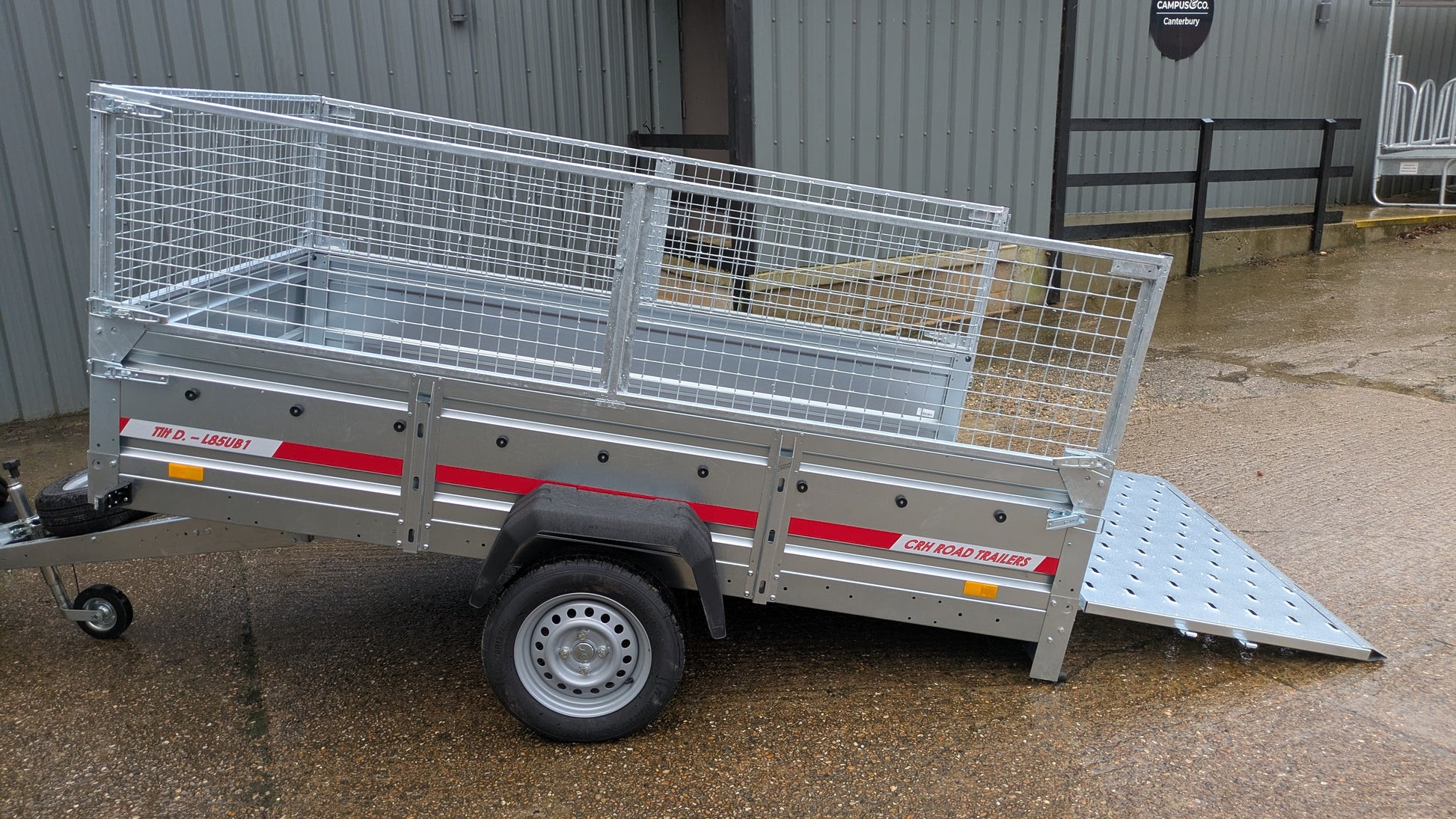

Photos show trailer with optional mesh sides and rear tailgate ramp.

Sides: Galvanised Steel - 400mm (16") high

Spare Wheel & Carrier: Yes, supplied as standard

Loading Ramps: No, but tailgate or 1.3mtr ramps available

Side Reinforcements (4 pieces): No, but available as an option (fitted)

GVWR: 750kg

Series: PK2615

Load Capacity (Payload): 552kg

Trailer Weight: 198kg

External Length (Overall): 3760mm

Internal Bed Length: 2640mm (8ft 6in)

External Width: 1930mm

Internal Bed Width: 1500mm (5ft)

Overall Height: 920mm

Brakes: Unbraked

Wheels & High-Speed Tyres: 155/70 R13 4X100 74N 4Jx13 ET30

Suspension: Torsion axle

Tilting: Yes

Floor: Coated anti-slip plywood

Frame Type: Bolted

Frame Material: Galvanised Steel

Extra mesh sides - 600mm (2') on top of solid sides

Universal tailgate ramp (instead of d.s or mesh)

Frame Crossbeam - 1500mm

Flat Grey PVC Cover with bungee

High sided canopy frame & PVC covers - 1100mm high

Extra Steel Sides Set - 400mm high (16")

Front Ladder Rack - 900mm (3') high

Propstand Set - Pair with clamps

Hitch Lock - Unbraked
