D - L85UB2

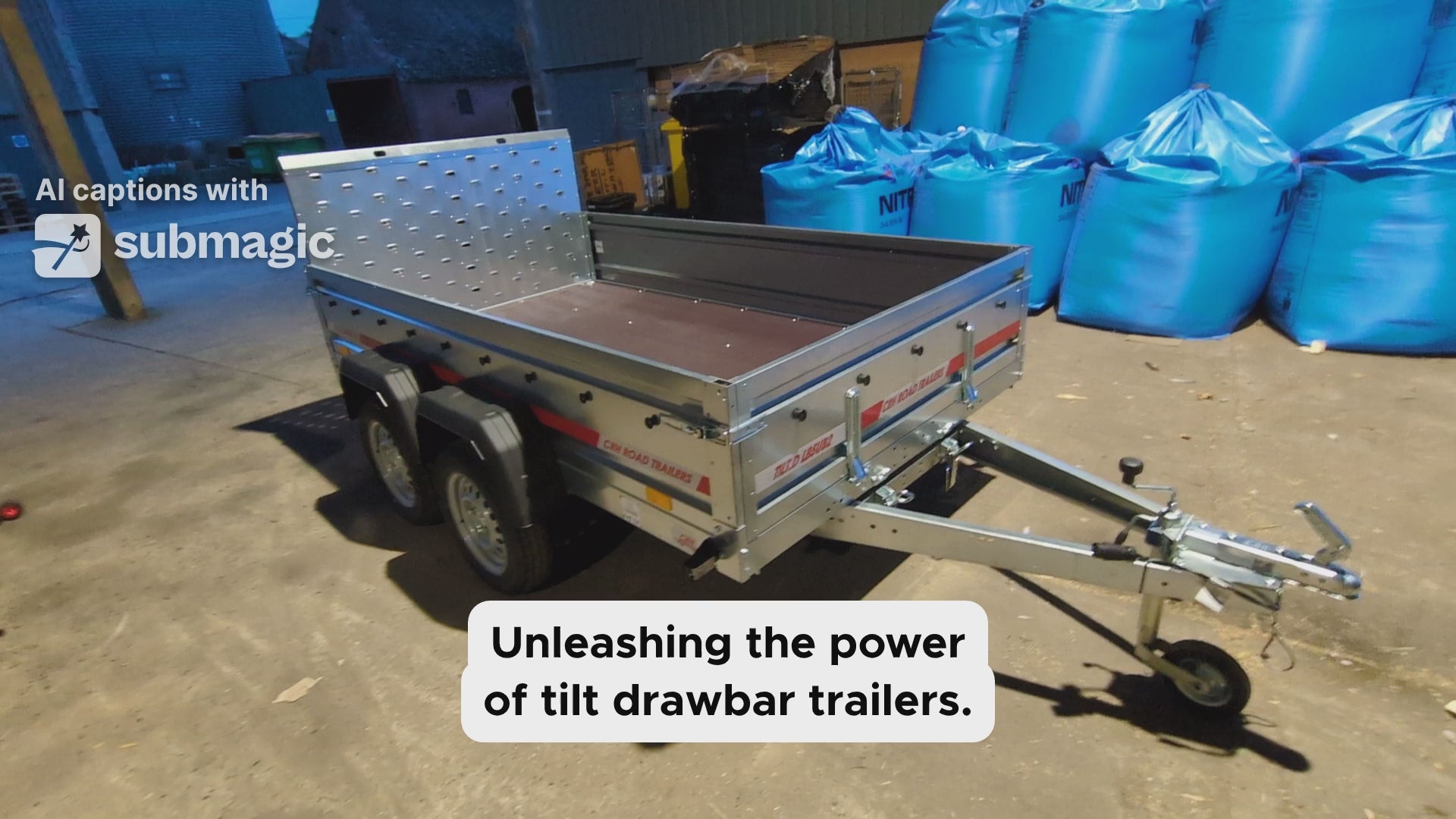

Description: Car/Van 8'6" x 5' drop-side, Twin axle - tilting drawbar

Sides: Galv. Steel - 400mm (16") high
Spare Wheel & Carrier: Yes, supplied as standard
Loading Ramps: No, but tailgate or 1.3mtr ramps available
Side Reinforcements 4 pce: No, but available as an option (fitted)

GVWR: 750kg
Series: PK
Load Capacity (Payload): 507kg
Trailer Weight: 243kg
External Length - Overall: 3760mm
Internal Bed Length: 2640mm
External Width: 1930mm
Internal Bed Width: 1500mm
Overall Height: 920mm
Brake: Unbraked
Wheels & High Speed Tyres: 155/70 R13 4X100 74N 4Jx13 ET30
Tilting: Yes
Floor: Coated anti-slip plywood
Frame Type: Bolted
Frame Material: Galvanised Steel

Spare wheel & bracket (fitted to front)

Extra mesh sides - 600mm (2') on top of drop sides

Universal tailgate ramp - instead of drop side or mesh

Frame Crossbeam - 1500mm

Flat Grey PVC Cover with bungey

High sided canopy frame & PVC covers - 1100mm

Front Ladder Rack - 900mm (3') high

Propstand Set - Pair with clamps
