CRH Heavy Tilt-Bed - H16K3.5 15'5"+ x 6'10" 3.5t Pro trailer

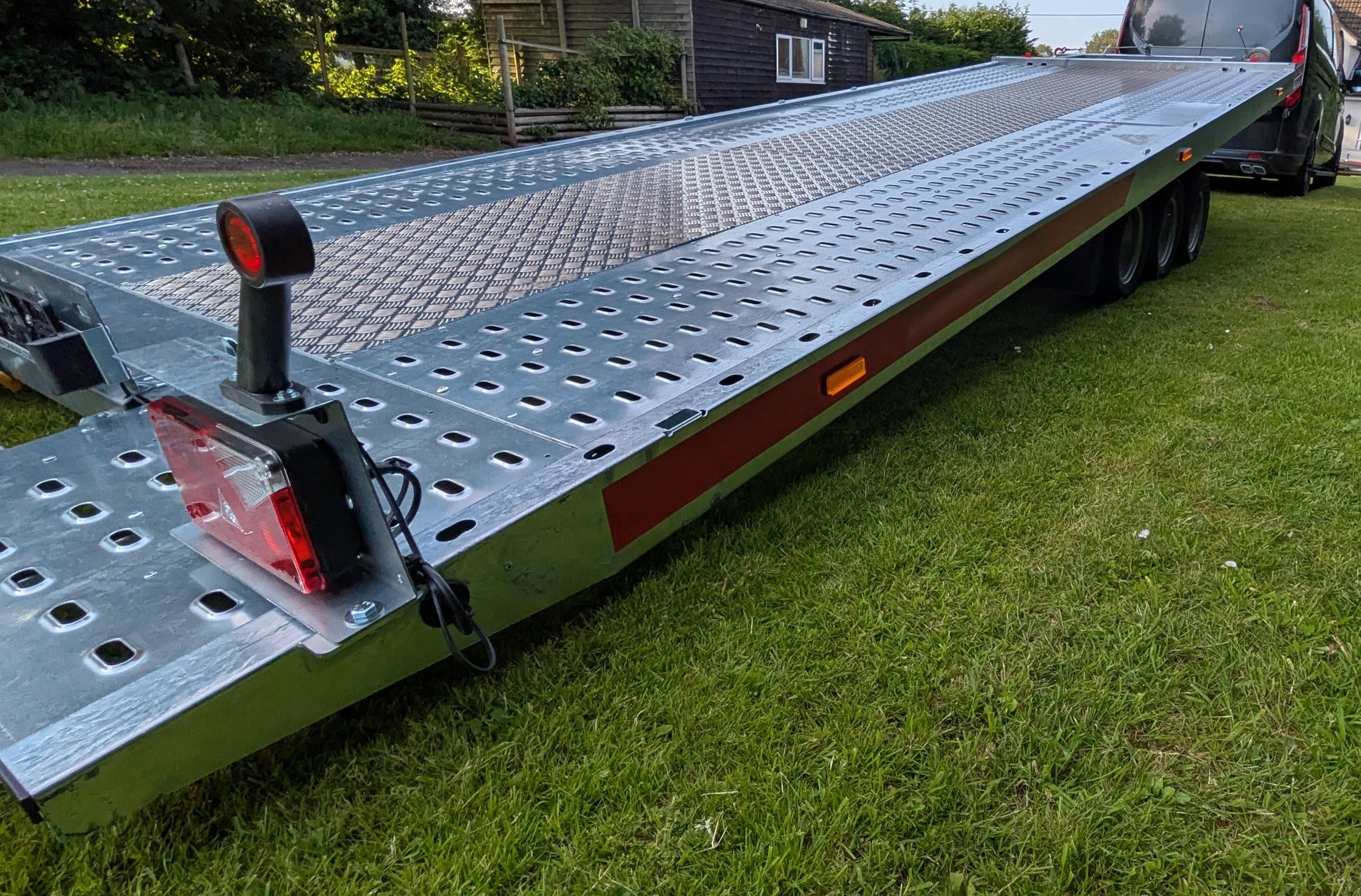

The CRH Heavy Braked Tilt-Bed Trailer is a PRO tilt-bed trailer with dimensions of 15'5"+ x 6'10" and a steel punched deck, designed for heavy-duty hauling, especially vehicles and machinery with normal ground clearance. This tri-axle trailer offers a low loading angle of 11 degrees, making it ideal for transporting heavy loads. The trailer does not require ramps, making it easy to load with its tilt-bed function.

Fitted as standard with hand winch, LED marker lamps all round, sprung loaded lashing loops (and lashing holes) and a HD auto flip-up jockey wheel.

One of the only 3.5t Tilt-bed trailers available where:

1. No ramps are required,
2. It still has good ground clearance at the rear of the trailer
3. All the wheels stay on the ground when tilted
4. The loading angle is still only 11 degrees, even with a tri-axle
5. The correct width for transporting vehicles
6. Thats why it is in the top 5 of CRH's best selling trailers.

Options: 4309kg Electric winch (hand winch remains as standard fitment), spare R10 wheel

Sides: No

Roof: N/A

Standard Fitments:

Auto HD F/U Jockey wheel

Winch & centre pulley

Internal lashing points

Marker lamps

Spare Wheel & Carrier: No, but available as an option

Loading Ramps: Not required

GVWR: 3500kg

Series: CK482033.5T

Load Capacity (Payload): 2674kg

Trailer Weight: 826kg

External Length (Overall): 6885mm

Internal Bed Length: 4685mm

External Width: 2150mm

Internal Bed Width: 2090mm

Overall Height: 600mm deck (excluding jockey wheel)

Brake: Braked

Wheels & High-Speed Tyres: 195/55 R10C

Suspension: Knott Torsion sprung

Tilting: Yes

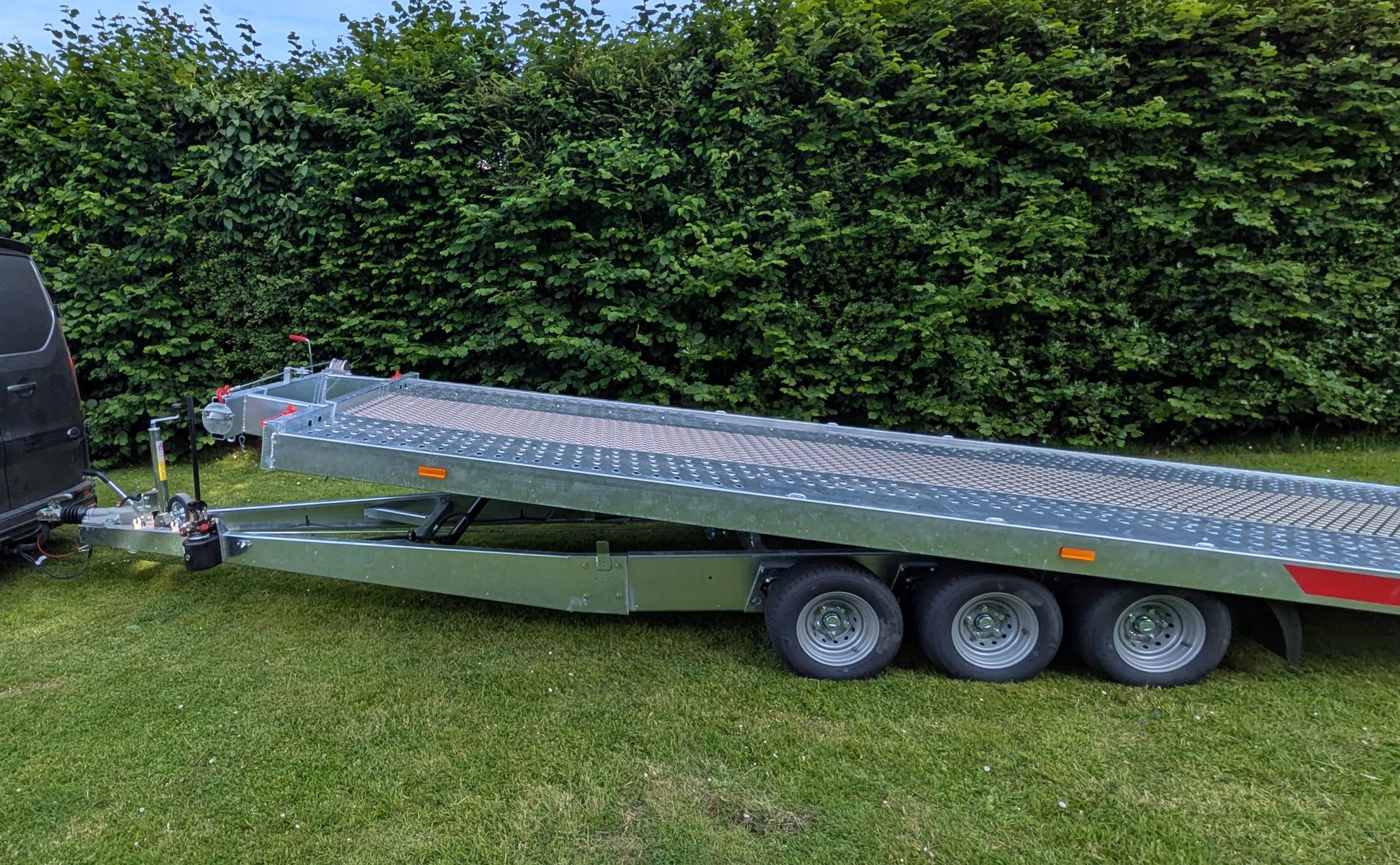

Floor: Punched steel with aluminium infill

Frame Type: Fully welded

Frame Material: Galvanised Steel

Hitch Lock - Braked for hitched & un-hitched

Spare Wheel & Bracket

Full LED Light Set

Ali tool/equipment box - fitted above or under frame

Twin wheel chocks
