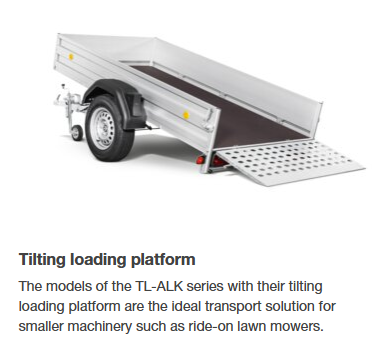

Bockmann Tiltbed TL ALK 2513/135 8'3" x 4'3" with ramp

1.35t gross. 1006kg payload/carrying capacity.

Tiltbed 8'3" x 4'3" with galv full width tailgate ramp
& 14" (350mm) high sides.
Single axle - tilting deck.

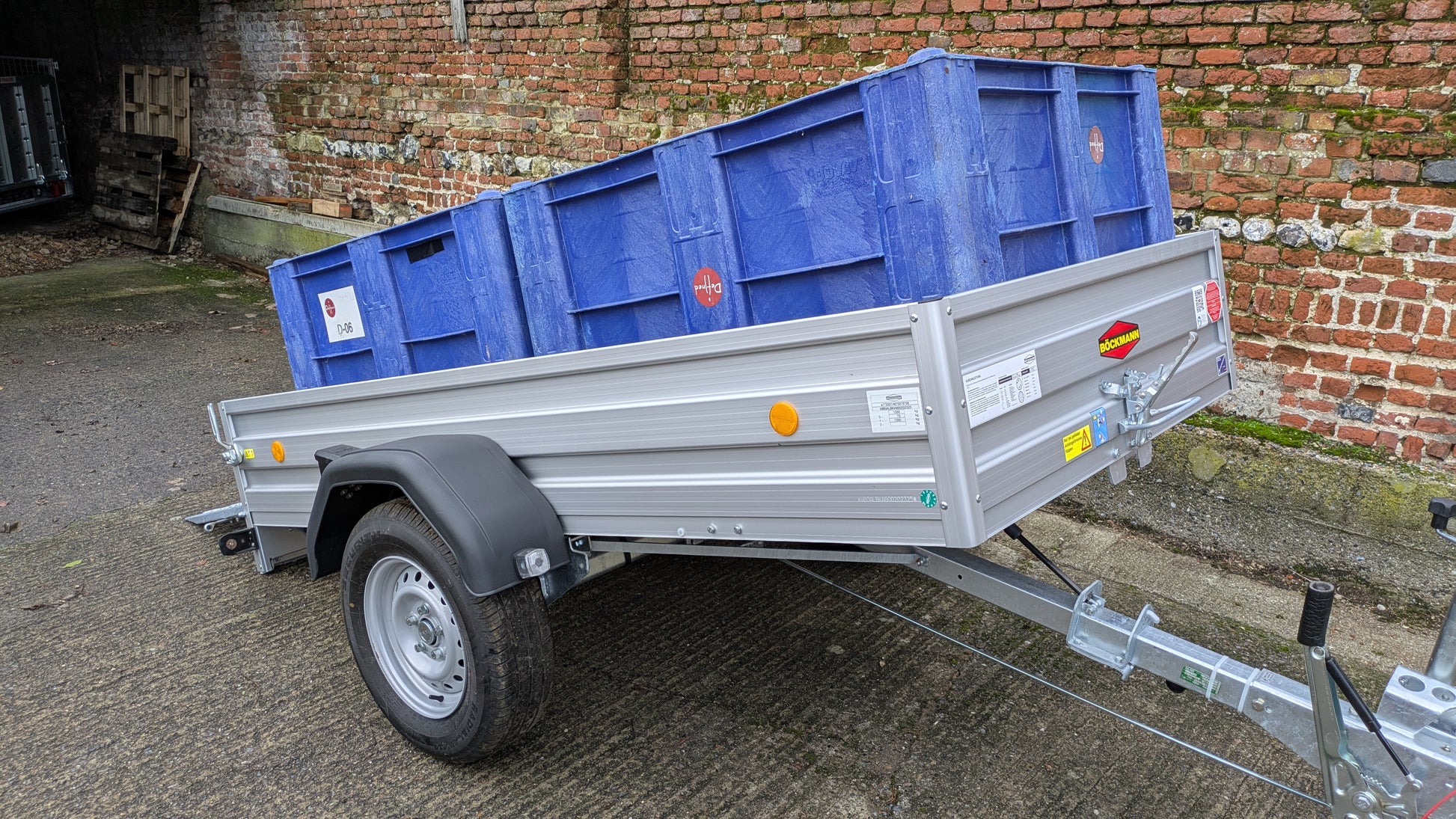

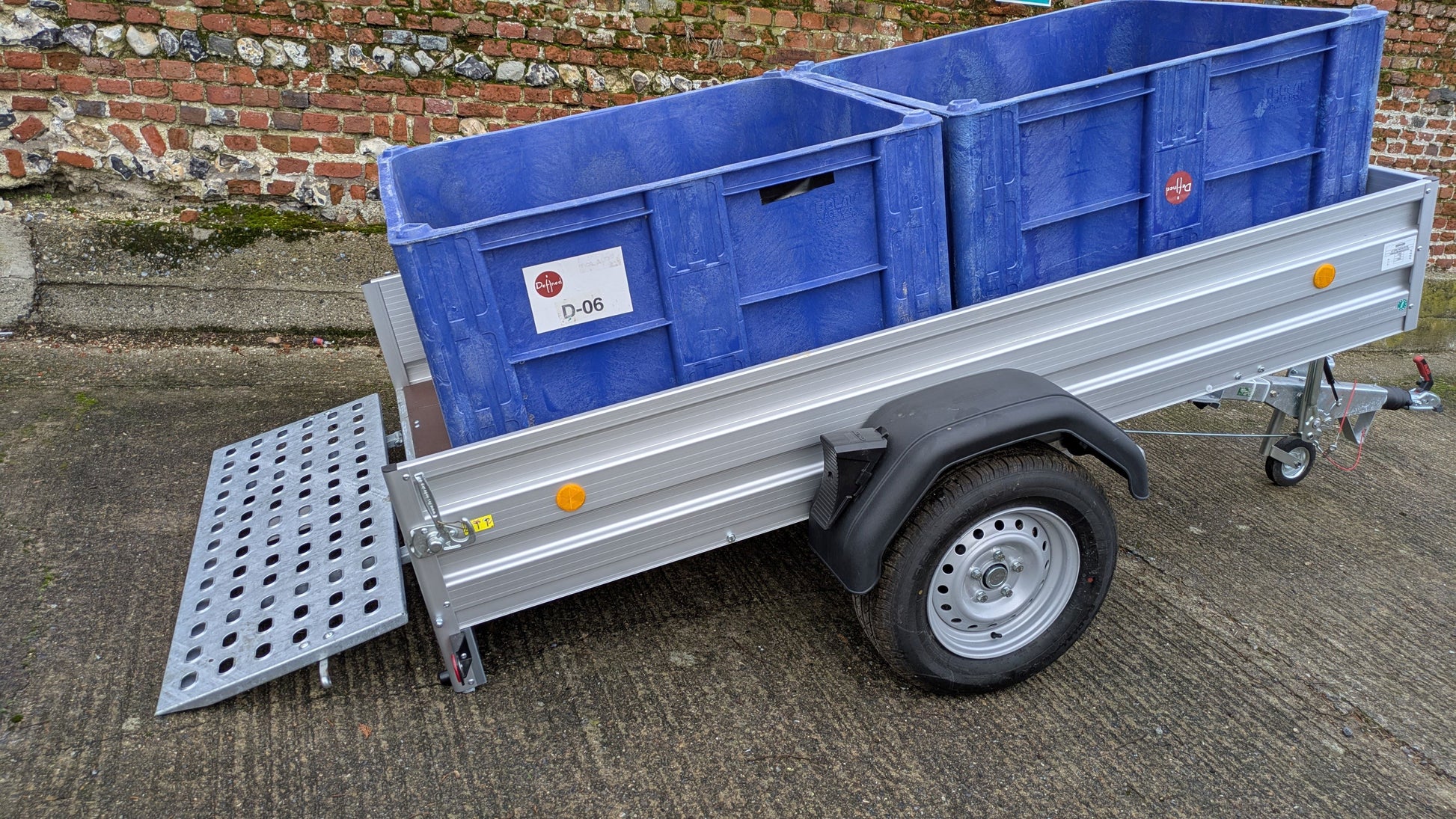

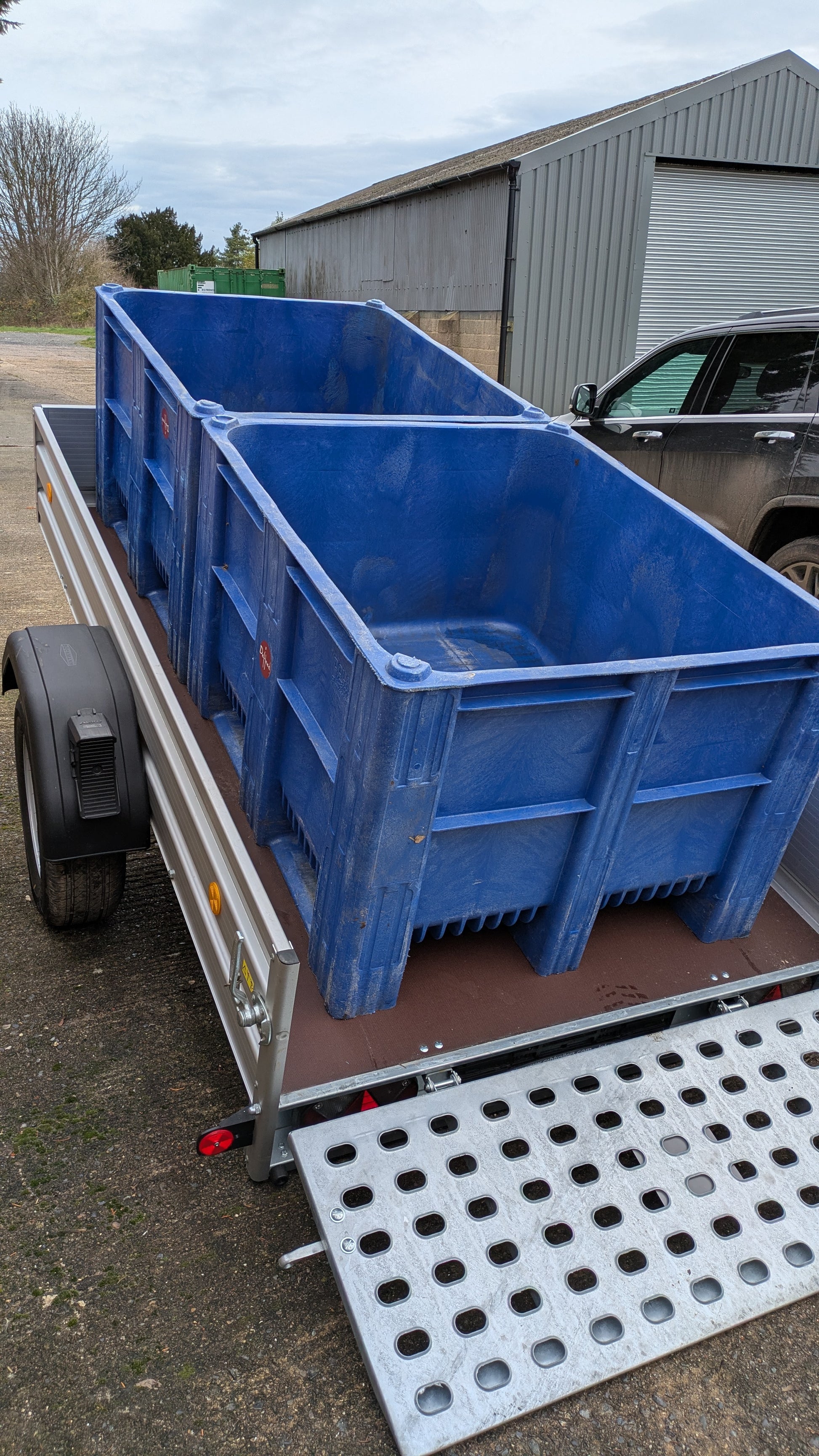

Can take 3 full bins of grapes or 4 empties (bins not included in the sale)

Mesh sides also available.

Sides: Galv. Steel - 350mm (14")high
Spare Wheel & Carrier: Yes, supplied as standard

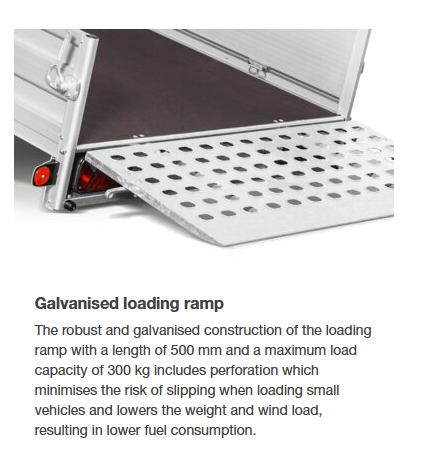

Loading ramps: Yes, tailgate ramp fitted
Side reinforcements 4 pce: No, but available as an option (fitted)

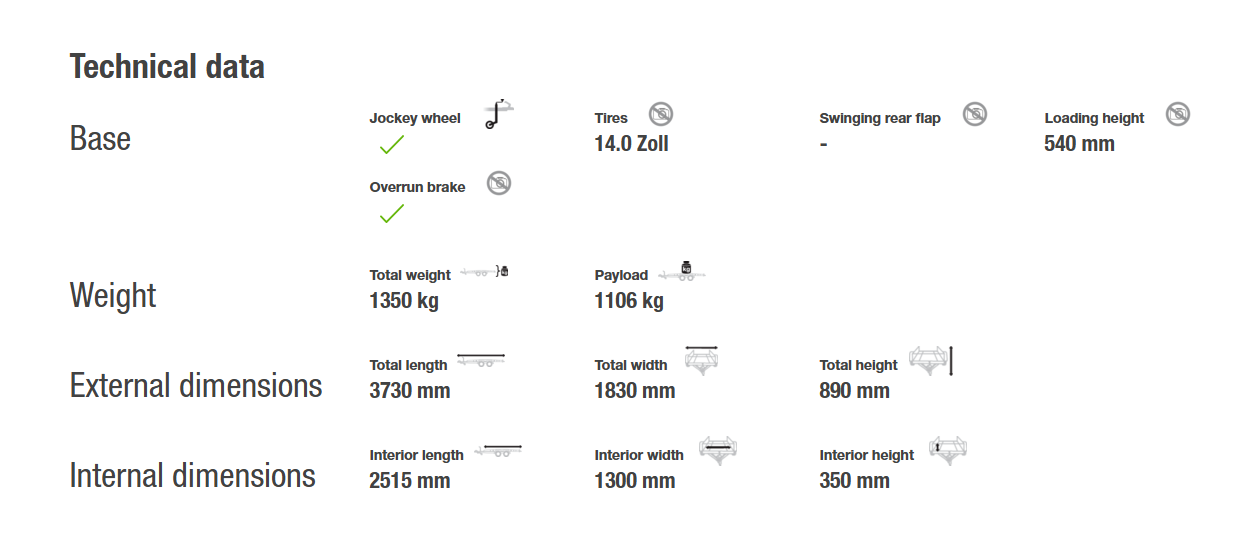

Technical Data
GVWR: 1350kg
Series: Bk.TL.AL2513/135
Load Capacity (Payload): 1106kg
Trailer Weight: 244kg
External Length - Overall: 3730mm
Internal Bed Length: 2515mm (8'3")
External Width: 1830mm
Internal Bed Width: 1300mm (4'3")
Overall Height: 890mm
Brake: Overun braked
Wheels & high speed tyres: 155/70 R13 4X100 74N 4Jx13 ET30

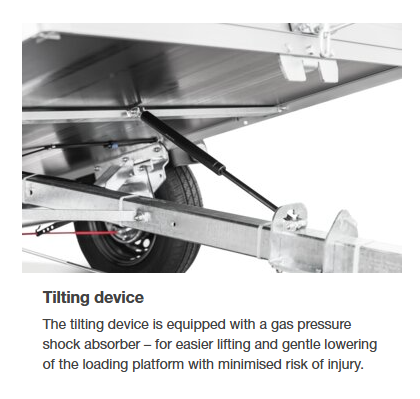

Tilting: Yes
Floor: Coated anti-slip plywood
Frame type: Bolted
Frame material: Galvanised Steel

Extra mesh sides - 600mm (2') on top of solid sides
Frame Crossbeam - 1250mm
Flat Grey PVC Cover with bungee
High-sided canopy frame & PVC covers - 800mm
Front Ladder Rack - 900mm (3') high
Hitch Lock - Unbraked
Propstand Set - Pair with clamps
