Pipe Handler - H16S3.5 Ideal for transporting and unreeling pipe coils. 3.5t

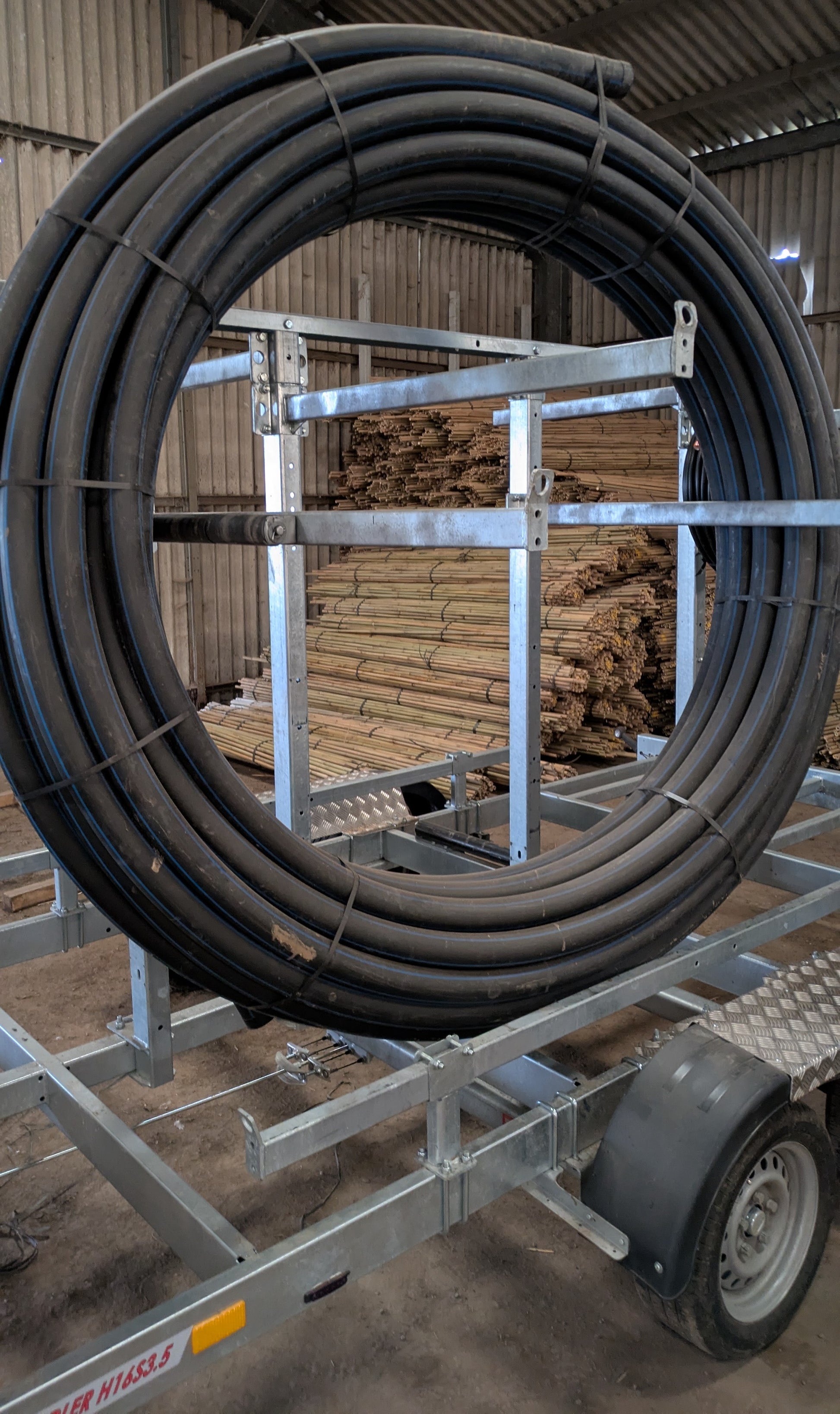

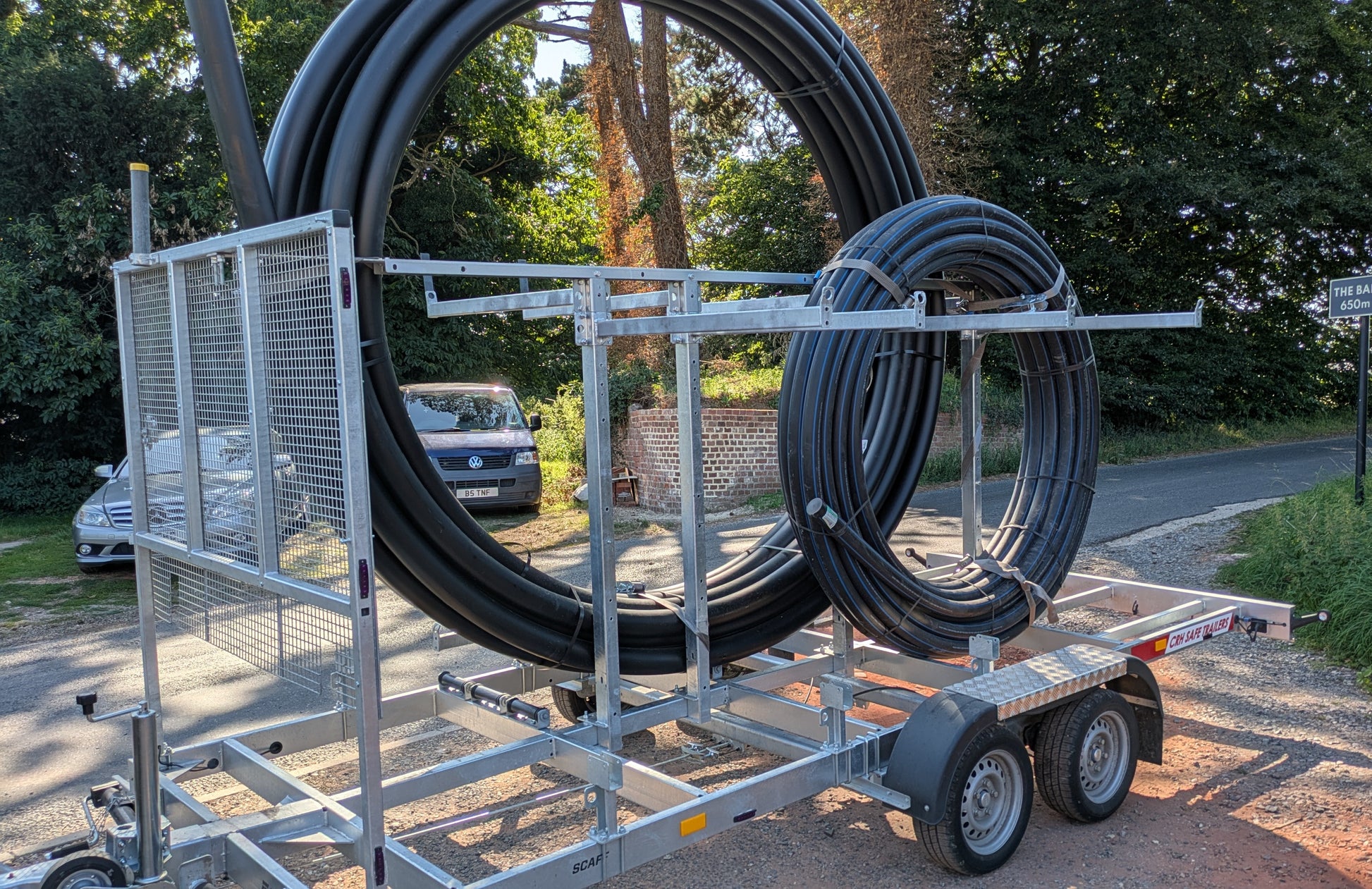

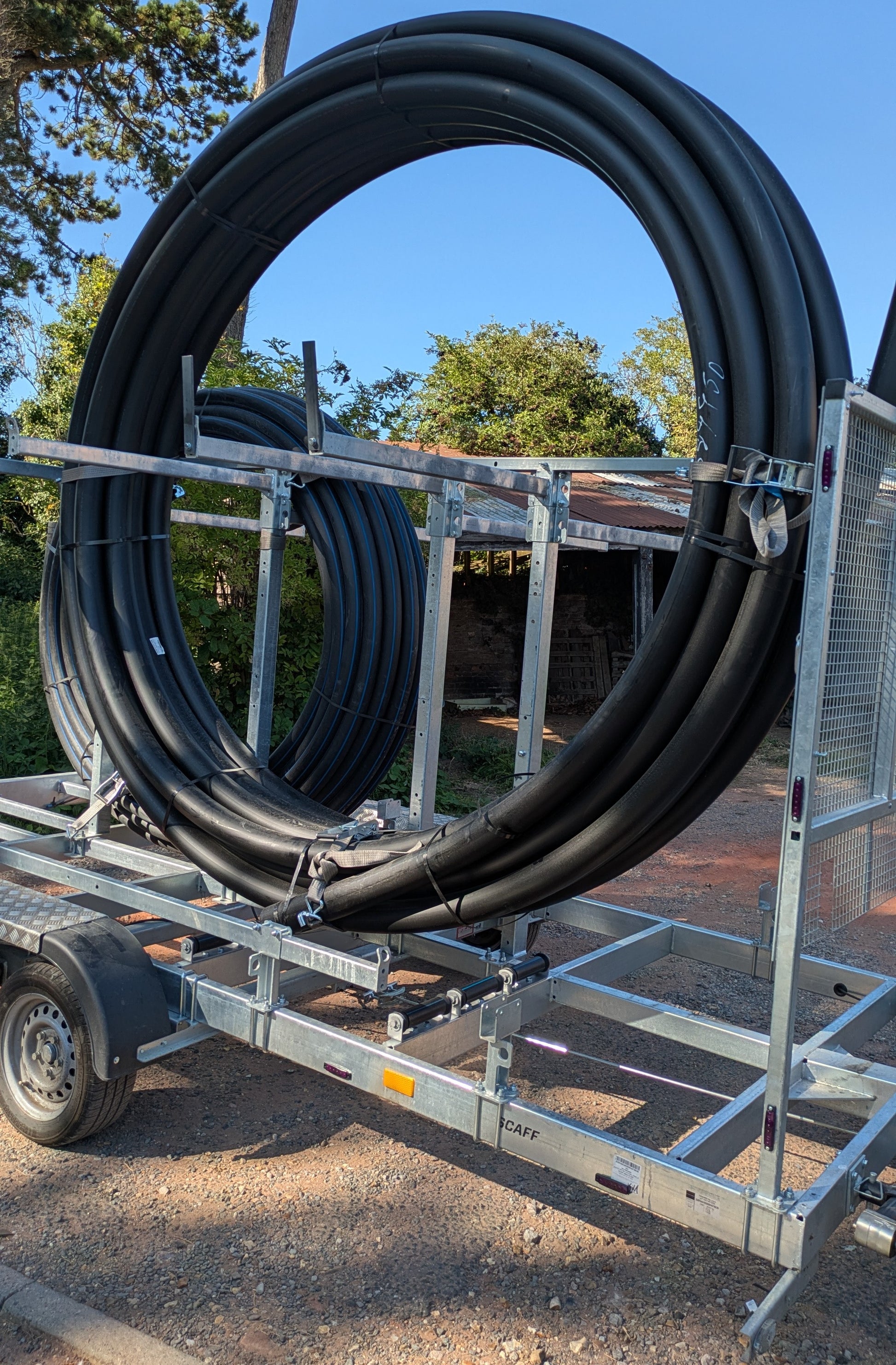

An open chassis trailer with a centre frame designed for carrying and unreeling pipe coils up to 110mm x 100mtr, making it ideal for the pipe handling industry.

Fitted with large lockable steel storage bin at the front to keep fittings and tools in.

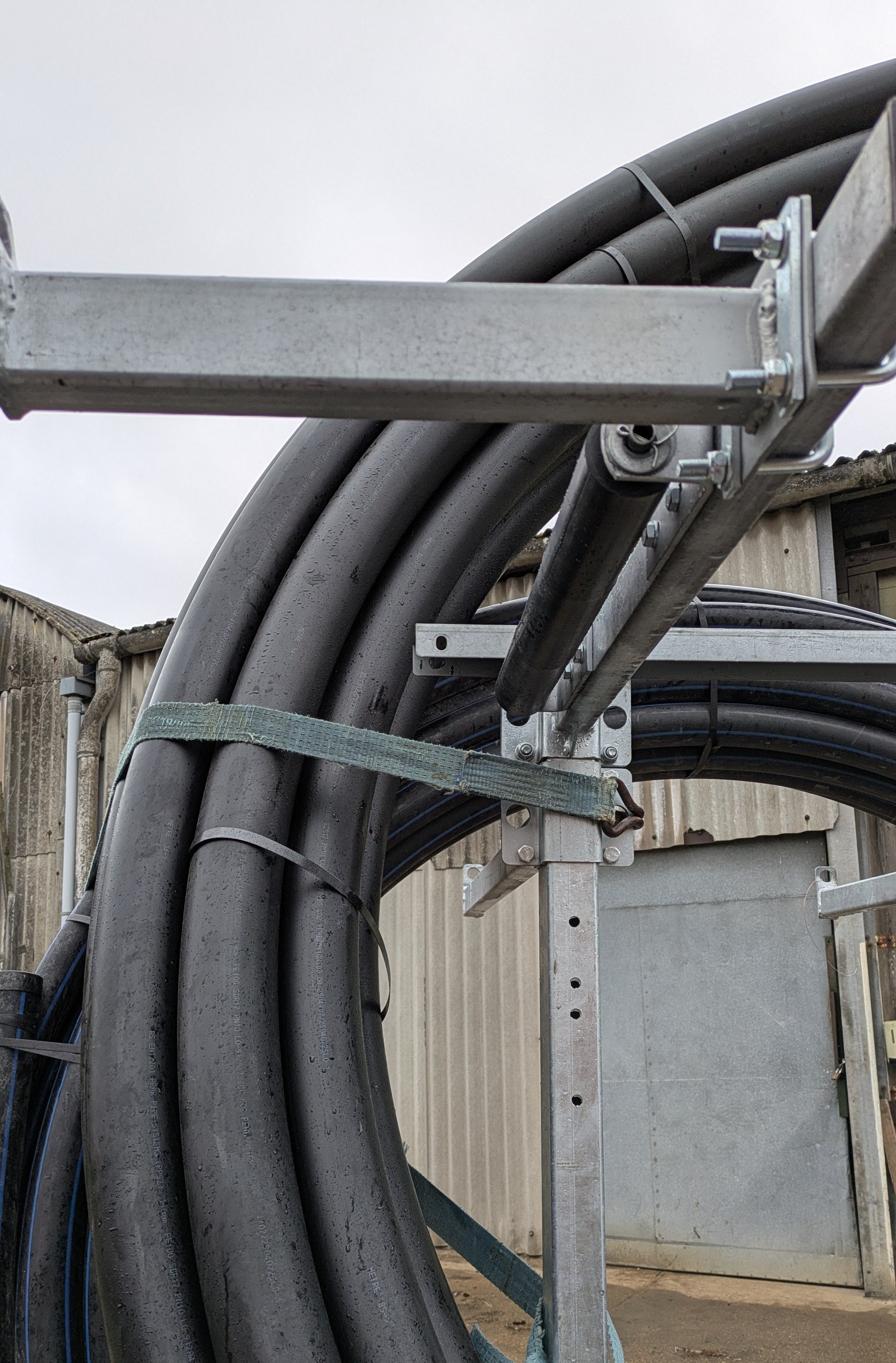

More full width rollers are fitted to current models - please ask for more details.

Sides: No

Standard CRH Fitments: HD auto jockey wheel, spare wheel, internal lashing loops, XL storage bin

Loading Ramps: N/A

Side Reinforcements: N/A

GVWR: 3500kg

Series: SC48242S3.5T+R

Load Capacity (Payload): 2680kg

Trailer Weight: 820kg

External Length (Overall): 5980mm

Internal Bed Length: 4800mm

External Width: 2545mm

Internal Bed Width: 2500mm

Overall Height: 2490mm

Brake: Overrun braked

Wheels & High-Speed Tyres: 195/50 R13C 5X112 104/101N 5,5Jx13 ET30

Tilting: No

Floor: Open frame

Frame Type: Welded & Bolted

Frame Material: Galvanised Steel

Spare wheel & bracket

Extra aluminium storage box - above or below

Hitch Lock - for hitched or un-hitched
