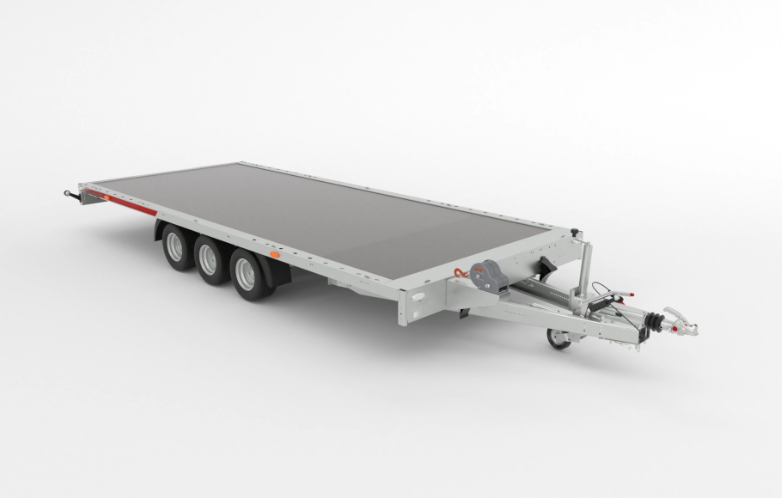

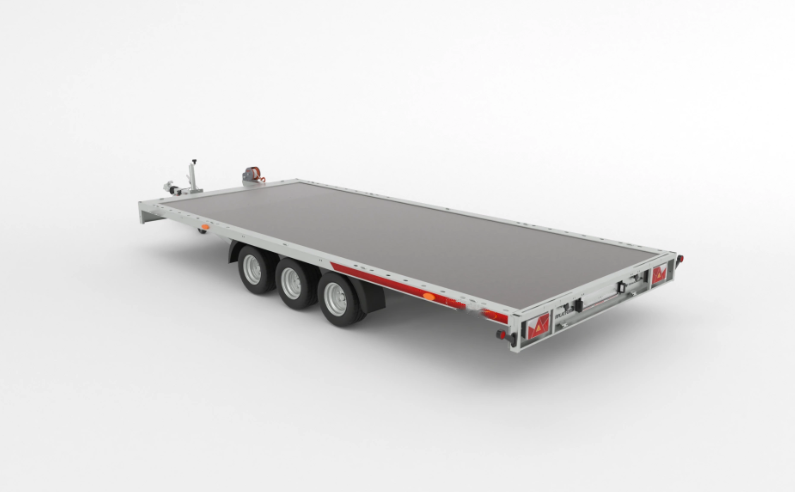

Platform - H16S3.5 16'7" x 6'11" Pro Platform trailer 3.5t

A flat large platform trailer, designed for 3.5t capacity and tri-axle configuration. Perfect for transporting larger loads securely with ease.

Twin axle version also available but only gives 18kg more payload and is exactly the same price as our tri-axle version here.

Sides: No, but available as an option

Standard CRH Fitments: HD auto jockey wheel, marker lamps, internal sprung-loaded lashing loops, hand winch

Loading Ramps: No, but available as an option

Side Reinforcements: N/A

GVWR: 3500kg

Series: CP51213S3.5TP

Load Capacity (Payload): 2806kg

Trailer Weight: 734kg

External Length (Overall): 6570mm

Internal Bed Length: 5070mm

External Width: 2150mm

Internal Bed Width: 2110mm

Overall Height: 890mm

Brake: Overrun braked

Wheels & High-Speed Tyres: 195/55 R10C 5X112 98/96N 6Ix10 ET-4

Tilting: No

Floor: Coated anti-slip ply wood

Suspension: Knott Torsion Spring

Frame Type: Welded

Frame Material: Galvanised Steel

Spare wheel & bracket

Steel 2.5mtr long ramps - stowed under

Aluminium 2.5mtr long ramps - stowed under

CRH Ramp clamp

LED Rear lamp clusters

Aluminium storage box - above or below
