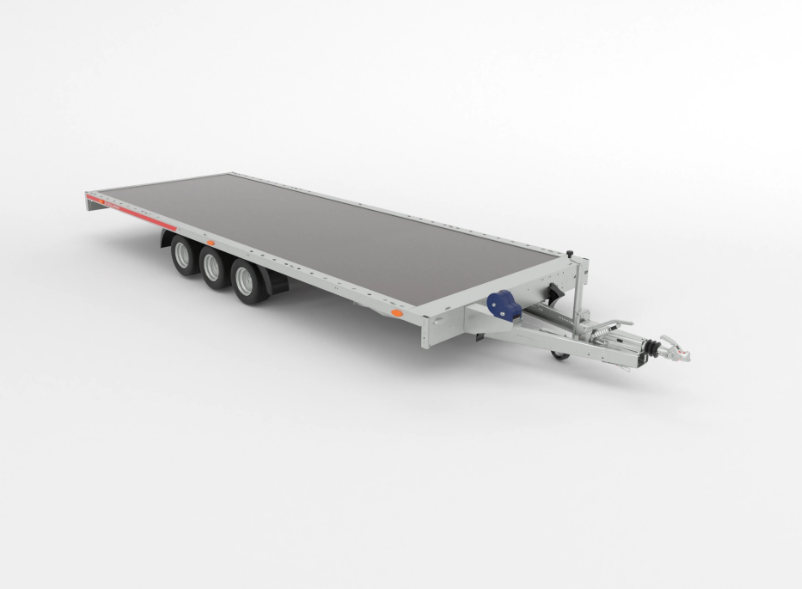

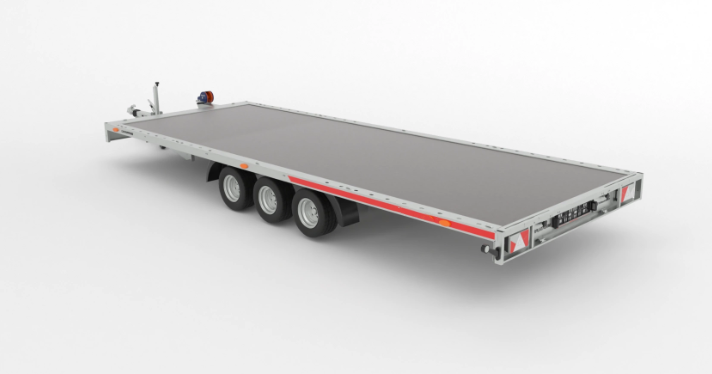

CRH 3.5t Platform - H19S3.5 19'4" x 6'11" Tri-Axle Platform Trailer 3.5t

3 year warranty

Extra-large flat platform trailer, designed for transporting larger loads, with a tri-axle Knott running gear and 3.5t gross capacity. Payload of 2718kg.

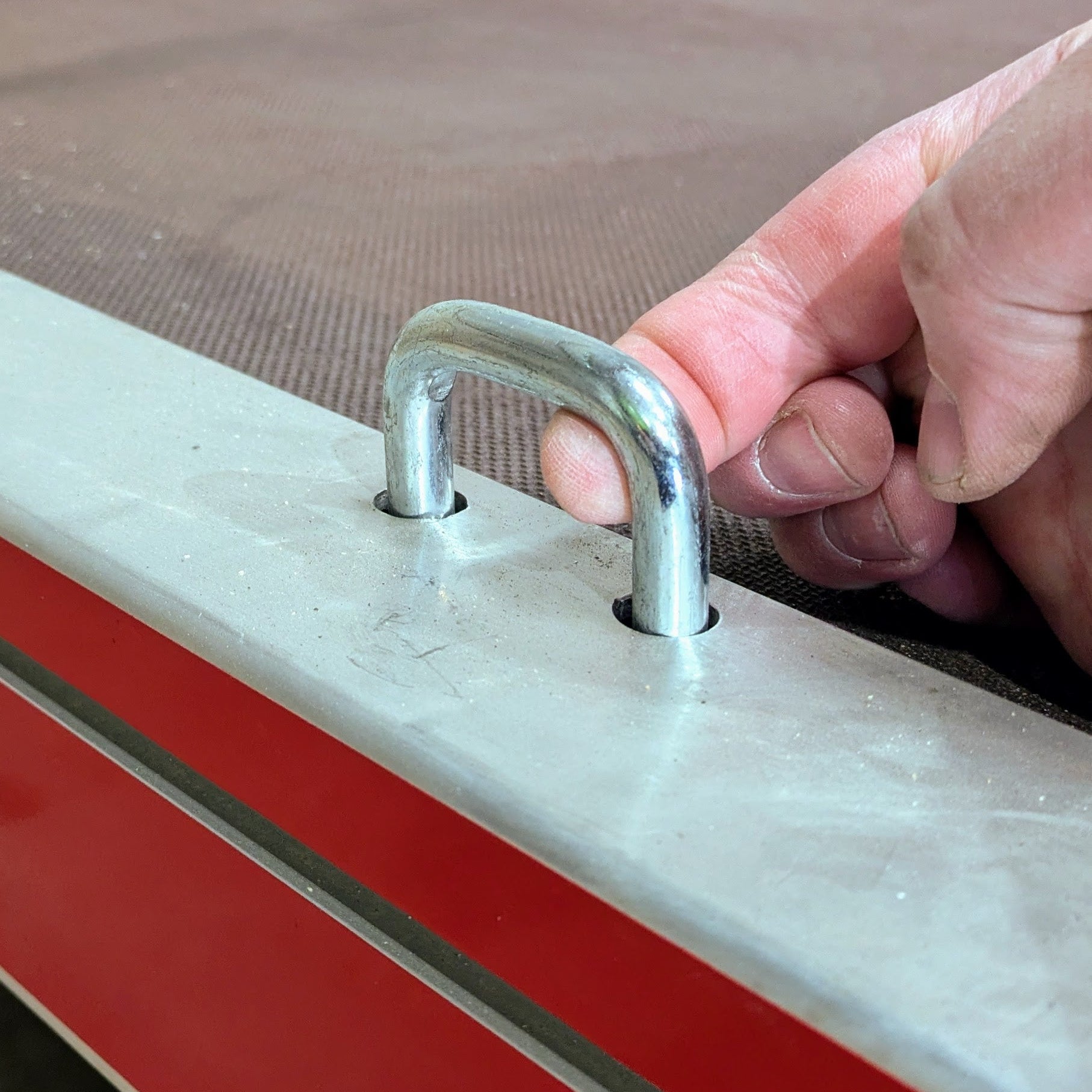

Fully welded and galvanised chassis. Hand winch fitted as standard along with HD auto flip-up jockey wheel. Internal sprung loaded lashing points, LED marker lamps all round.

Torsion sprung Knott suspension units and hitch coupling.

2.5mtr Steel ramp set - stowed under but aluminium ramps available as an option plus aluminium 300mm high drop-sides kit and electric winch.

Sides: No, but available as an option

Standard CRH Fitments: HD auto jockey wheel, marker lamps, internal sprung-loaded lashing loops, hand winch

Loading Ramps: No, but available as an option

Side Reinforcements: N/A

GVWR: 3500kg

Series: CP60213S3.5TP

Load Capacity (Payload): 2718kg

Trailer Weight: 782kg

External Length (Overall): 7400mm

Internal Bed Length: 5890mm

External Width: 2150mm

Internal Bed Width: 2110mm

Overall Height: 890mm

Brake: Overrun braked

Wheels & High-Speed Tyres: 195/55 R10C 5X112 98/96N 6Ix10 ET-4

Tilting: No

Floor: Coated anti-slip ply wood

Suspension: Knott Torsion Spring

Frame Type: Welded

Frame Material: Galvanised Steel

Spare wheel & bracket

Steel 2.5mtr long ramps - stowed under

Aluminium 2.5mtr long ramps - stowed under

CRH Ramp clamp

LED Rear lamp clusters

Aluminium storage box - above or below
