CRH 'Red-Stripe' HD 3.5t 3-Way Tipper - H123W3.5 - 3 YEAR WARRANTY

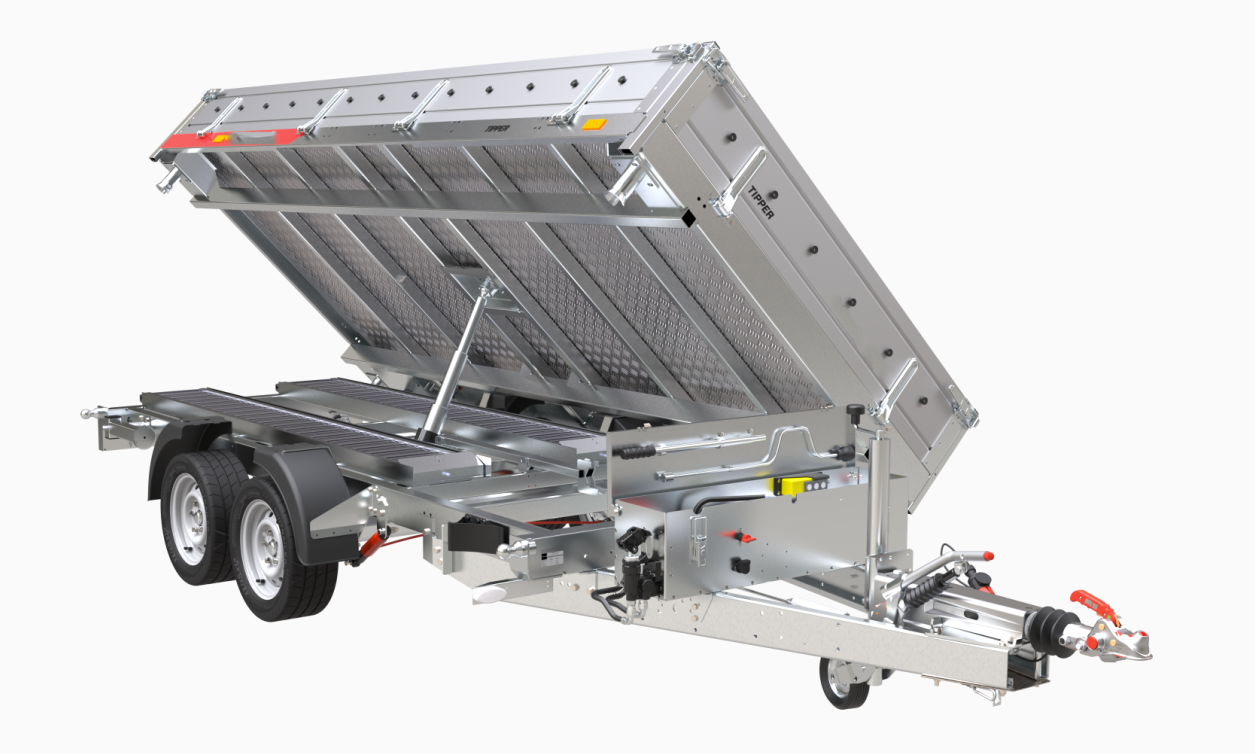

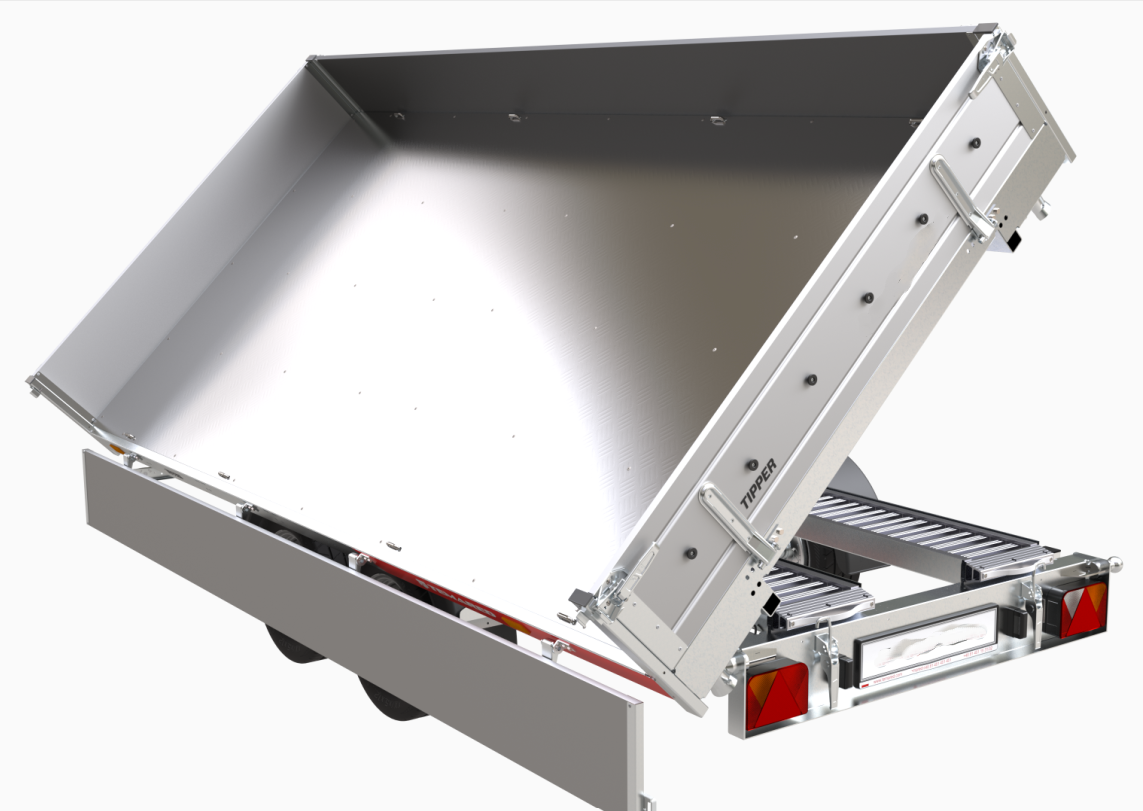

A large 3-way tipper trailer with a 3.5t capacity, equipped with side and rear tipping functionalities.

Payload: 2490kg

Internal: 3.64mtr (12ft) x 1.7mtr wide (5'7")

• Floor: Steel floor
• Wheels: 195/50 R13C
• Trailer version: european
• Lifting system: electric+manual
• Equipment: Spare wheel bracket + spare wheel
• Equipment: H400 welded sides
• Equipment: Full LED lighting
• Equipment: HD auto flip-up jockey wheel
• Equipment: Side support set
• Equipment: Single aluminum dock levellers
• Sides: Welded H400 sides

THIS HAS GOT TO BE THE ULTIMATE LANDSCAPER OR BUILDERS TRAILER with all these options available:

• Ramps: Aluminium ramps with ramp fasteners (Optional extra 1)
• Mesh sides - 630mm high (Optional extra 2)
• Flat PVC cover - Grey. To go over solid or mesh sides (Optional extra 3)
• Front Ladder Rack (Optional extra 5)
• Extra solid sides - 360mm high (Optional extra 6)

Sides: Yes, welded steel

Standard CRH Fitments: HD auto jockey wheel, marker lamps, spare wheel & bracket, electric/hydraulic & manual 5-stage ram

Loading Ramps: No, but available as an option

Side Reinforcements: Yes, available as an option

GVWR: 3500kg

Series: TI36172C3.5T

Load Capacity (Payload): 2484kg

Trailer Weight: 1016kg

External Length (Overall): 5300mm

Internal Bed Length: 3640mm

External Width: 1860mm

Internal Bed Width: 1700mm

Overall Height: 1126mm

Brake: Overrun braked

Wheels & High-Speed Tyres: 195/50 R13C 5X112 104/101N 5,5Jx13 ET30

Tilting: Yes - tipping up to 50 degrees

Floor: Steel

Frame Type: Welded

Frame Material: Galvanised Steel

Extra solid steel sides - 360mm high

Mesh sides - 630mm high

Steel 2.5mtr long ramps

Aluminium 2.5mtr long ramps with brackets

PVC Flat cover with bungey

LED Rear lamp clusters

Aluminium storage box - above or below

Hitch Lock - for hitched or un-hitched
